In the world of boiler operations, efficiency isn’t just about saving fuel—it’s about ensuring safety, meeting regulations, and optimizing performance. Flue gas analyzers are pivotal tools that help achieve these goals. By examining the gases emitted during combustion, these devices provide critical insights into the boiler’s operation.
Consider this: a boiler operating without proper monitoring can waste fuel, emit harmful pollutants, and pose safety risks. Flue gas analyzers help detect issues like incomplete combustion, excess oxygen levels, and the presence of hazardous gases such as carbon monoxide (CO) and nitrogen oxides (NOₓ). Addressing these issues not only improves efficiency but also ensures compliance with environmental standards.
This article delves into the essential role of flue gas analyzers in boiler systems. We’ll explore how they work, their benefits, and practical steps to integrate them into your operations. Whether you’re a facility manager, technician, or engineer, understanding these tools can lead to safer, more efficient, and compliant boiler operations.

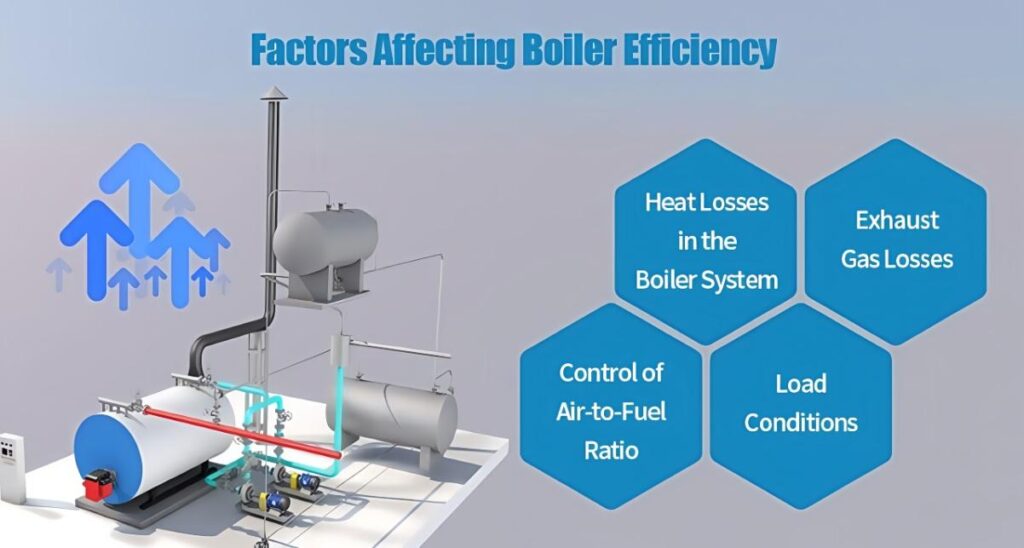

How Does Flue Gas Analysis Improve Boiler Efficiency and Ensure Safety?
A. Fundamentals of Combustion and Flue Gases
Boilers operate by burning fuel—such as natural gas, oil, or coal—to produce heat. This combustion process generates flue gases, which exit the system through a flue or chimney. These gases are not just by products; they hold vital clues about the combustion efficiency and safety of the boiler.
Key components of flue gases include:
- Carbon Dioxide (CO₂): A primary indicator of combustion efficiency. Higher CO₂ levels typically signify more complete combustion.
- Carbon Monoxide (CO): A toxic gas resulting from incomplete combustion. Elevated CO levels can indicate poor burner performance or insufficient oxygen supply.
- Oxygen (O₂): The presence of excess oxygen suggests that more air is supplied than necessary, leading to energy losses.
- Nitrogen Oxides (NOₓ): Formed at high combustion temperatures, these gases contribute to environmental pollution and are subject to regulatory limits.Clean Boiler+2
- Sulfur Dioxide (SO₂): Produced when sulfur-containing fuels are burned, SO₂ is a precursor to acid rain and is also regulated.
Understanding the composition of these gases allows operators to assess combustion quality and make necessary adjustments.
B. Purpose and Importance of Flue Gas Analysis
Flue gas analysis serves several critical functions in boiler operations:
- Assessing Combustion Efficiency: By measuring CO₂ and O₂ levels, operators can determine how effectively the fuel is being burned. Optimal combustion minimizes fuel consumption and maximizes energy output.
- Detecting Incomplete Combustion: Elevated CO levels signal incomplete combustion, which not only wastes fuel but also poses serious health risks due to CO’s toxicity.
- Ensuring Safety: Regular analysis helps identify dangerous conditions, such as high CO concentrations, that could lead to equipment damage or health hazards.
- Meeting Environmental Regulations: Monitoring NOₓ and SO₂ emissions ensures compliance with environmental standards, avoiding potential fines and contributing to environmental protection.
- Optimizing Maintenance Schedules: Consistent flue gas analysis can indicate when maintenance is needed, preventing unexpected breakdowns and extending equipment lifespan.
Incorporating regular flue gas analysis into boiler maintenance routines is not just best practice—it’s essential for efficient, safe, and compliant operations.
The next section will delve into the components and functionality of flue gas analyzers, providing practical insights into their selection and use.
What Are the Key Components and Functions of the Flue Gas Analyzer for Industrial Boiler?

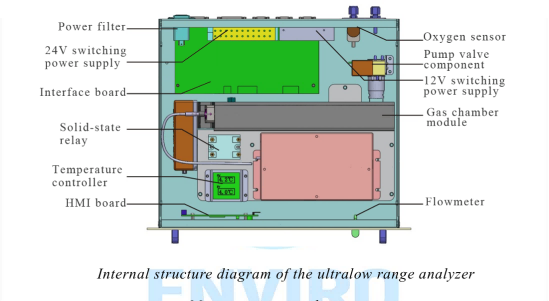

(Main components of flue gas analyzer)
A. Core Components
To understand how flue gas analyzer works, start with its key building blocks. Each component plays a distinct role in measuring and interpreting combustion gases in real time.
Here are the core elements of a modern flue gas analyzer:
- Gas Sampling System
It includes a probe, filters, and tubing that extract flue gas from the stack and remove dust or moisture before analysis. - Gas Chamber

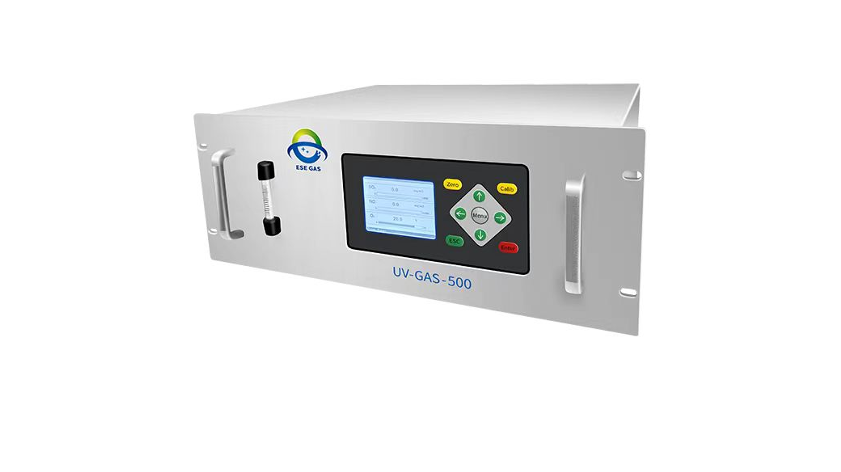

This is where the optical measurement takes place. The UV-GAS-500, for example, offers gas chambers tailored to different concentration ranges—from ultralow to ultrahigh. Longer optical paths improve sensitivity for low concentrations. - Optical Detection Module
Using UV differential optical absorption spectroscopy (DOAS), this module breaks light into its spectrum, and it detects gas-specific absorption patterns. A xenon pulse lamp ensures stable, long-life performance with minimal drift. - Sensor Modules
For gases like O₂, CO, and CO₂, the analyzer may use electrochemical sensors or non-dispersive infrared (NDIR) technology. Zirconia sensors, although optional, offer rapid O₂ measurement in harsh environments. - Control and Interface Unit
Equipped with an HMI (Human-Machine Interface), operators can calibrate, configure outputs, and monitor real-time data. The unit supports 4-20 mA outputs, RS485/RS232 communication, and digital I/O for integration with DCS/CEMS. - Temperature and Flow Control
To ensure measurement stability, the analyzer controls internal gas cell temperature and gas flow rate (typically 1.5 ± 0.5 L/min).
These components work together to deliver accurate, real-time insights into combustion efficiency, pollutant formation, and process control.
B. Measurement Parameters
What a flue gas analyzer measures—and how accurately—defines its value to plant operations.
Here are the most critical flue gas parameters:
- Oxygen (O₂)
Indicates excess air levels in combustion. Too much O₂ means energy waste; too little raises the risk of incomplete combustion. - Carbon Monoxide (CO)
A key indicator of incomplete combustion. High CO signals poor burner performance or insufficient air supply. - Carbon Dioxide (CO₂)
Shows how efficiently fuel is being converted into energy. Higher CO₂ generally suggests better combustion. - Nitrogen Oxides (NOₓ = NO + NO₂)
Formed at high temperatures, NOₓ contributes to smog and acid rain. Many analyzers, like the UV-GAS-500, separately measure NO and NO₂ for precise NOₓ calculation. - Sulfur Dioxide (SO₂)
Released from sulfur in fuel, SO₂ is tightly regulated due to its role in acid rain. UV absorption is highly effective for measuring SO₂, even in wet or dusty environments. - Temperature and Pressure
Affect gas density and measurement accuracy. Reliable analyzers monitor and compensate for these factors. - Flow Rate
Ensures consistent sample delivery. Poor or unstable flow leads to erratic readings.
Together, these parameters help operators:
- Tune air-fuel ratios
- Monitor environmental emissions
- Detect burner or fan issues
- Optimize fuel usage
By understanding both what’s being measured and how, plant teams can turn raw data into actionable insights.
Followed, we’ll explore how to choose the right analyzer for your specific boiler setup and operating environment.
How Do You Choose the Right Flue Gas Analyzer for Your Boiler?
(Flue gas analyzer for boiler)
A. Assessing Boiler Type and Application
Choosing the ideal flue gas analyzer starts with understanding your boiler’s category and its operational demands. Boilers generally fall into three categories:
- Residential Boilers
These are typically found in homes and small apartment buildings. They usually operate on natural gas or propane and have lower output capacities. - Commercial Boilers
Used in larger buildings such as schools, hospitals, or office complexes, commercial boilers handle higher loads and may use various fuels. - Industrial Boilers
Found in manufacturing plants and power stations, industrial boilers operate under demanding conditions and may use diverse fuels, including oil, coal, or biomass.
By aligning the analyzer‘s capabilities with the boiler’s type and operational context, you ensure accurate diagnostics and efficient performance.
B. Key Selection Criteria
When selecting a flue gas analyzer, consider the following critical factors to ensure optimal performance and longevity:
- Sensor Accuracy and Sensitivity
High-precision sensors are vital for reliable readings. For applications requiring detection of low gas concentrations, ensure the flue gas analyzer offers high sensitivity and low detection limits. - Durability and Suitability for Operating Conditions
The flue gas analyzer should withstand the specific environmental conditions it will encounter. Choose analyzers with robust casings, appropriate ingress protection ratings, and components resistant to the specific challenges of the environment. - Ease of Use, Maintenance Requirements, and Calibration Needs
User-friendly interfaces, clear displays, and intuitive controls enhance operational efficiency. Consider flue gas analyzer that offers easy access to filters and sensors for maintenance. - Compliance with Industry Standards and Certifications
Ensure the flue gas analyzer meets relevant industry standards and certifications, such as ISO 9001, CE marking, or specific environmental regulations. Compliance guarantees that the analyzer is suitable for its intended application and meets safety and performance benchmarks.
By carefully evaluating these criteria, you can select a flue gas analyzer that not only meets your current needs but also adapts to future requirements, ensuring long-term value and compliance.
How Will the Flue Gas Analyzer for Boiler Shape the Future of Sustainability?
A. Integration with Building Management Systems (BMS)
Integrating flue gas analyzers with Building Management Systems (BMS) transforms them from passive monitors into proactive control tools. By feeding real-time combustion data into the BMS, facilities can dynamically adjust air-fuel ratios, optimize burner performance, and maintain emission compliance without manual intervention. This seamless communication ensures that boilers operate at peak efficiency, reducing fuel consumption and minimizing harmful emissions.
Moreover, BMS integration allows for centralized monitoring of multiple boilers across different locations. Facility managers can access comprehensive dashboards displaying key performance indicators, enabling swift decision-making and rapid response to any anomalies. This holistic approach not only enhances operational efficiency but also extends equipment lifespan by preventing undue stress on boiler components.
B. Emerging Technologies
Cloud-based data analysis further amplifies the capabilities of flue gas analyzers. By leveraging cloud computing, vast amounts of emission data can be processed and analyzed swiftly, uncovering patterns and trends that inform predictive maintenance strategies. This proactive approach minimizes downtime and prevents costly repairs.
Artificial Intelligence (AI) is another game-changer in this domain. AI-driven diagnostics can interpret complex data sets to detect subtle anomalies, forecast potential failures, and recommend corrective actions. Such intelligent systems empower operators to make informed decisions, enhancing safety and efficiency.
C. Regulatory Trends and Environmental Impact
The regulatory landscape governing boiler emissions is becoming increasingly stringent, reflecting a global commitment to environmental sustainability. Agencies like the U.S. Environmental Protection Agency (EPA) have introduced measures such as the Boiler Maximum Achievable Control Technology (MACT) standards, which mandate significant reductions in hazardous air pollutants.
Beyond regulatory compliance, flue gas analyzer contributes to broader environmental objectives. By ensuring optimal combustion, they reduce the release of greenhouse gases and other pollutants, mitigating the environmental footprint of industrial operations. Furthermore, the data collected by these analyzers can inform sustainability initiatives, guiding efforts to improve energy efficiency and transition to cleaner fuel sources.
Conclusion
The integration of flue gas analyzer with advanced systems and technologies heralds a new era of boiler efficiency and environmental responsibility. As regulatory pressures mount and sustainability becomes a paramount concern, these analyzers will play an increasingly critical role in shaping the future of industrial energy management.
