Introduction

The ESEGAS ESE-GH-2080P Greenhouse Gas Analyzer is designed for portable measurement of major greenhouse gases in industrial emissions and environmental monitoring applications. Combining Gas Filter Correlation (GFC), NDIR, and TDLAS technologies, the analyzer provides reliable gas concentration data for greenhouse gas emission assessments, methane leak investigations, environmental research, and industrial process monitoring. Its integrated sampling and data recording functions make it suitable for mobile field measurements and laboratory applications.

Measured Gas: CO₂ | CH₄ | N₂O | Optional CO & O₂

Technology:  NDIR-GFC | TDLAS

Configurations:  Portable

Want to see more details, visit our news!

Technical Specification

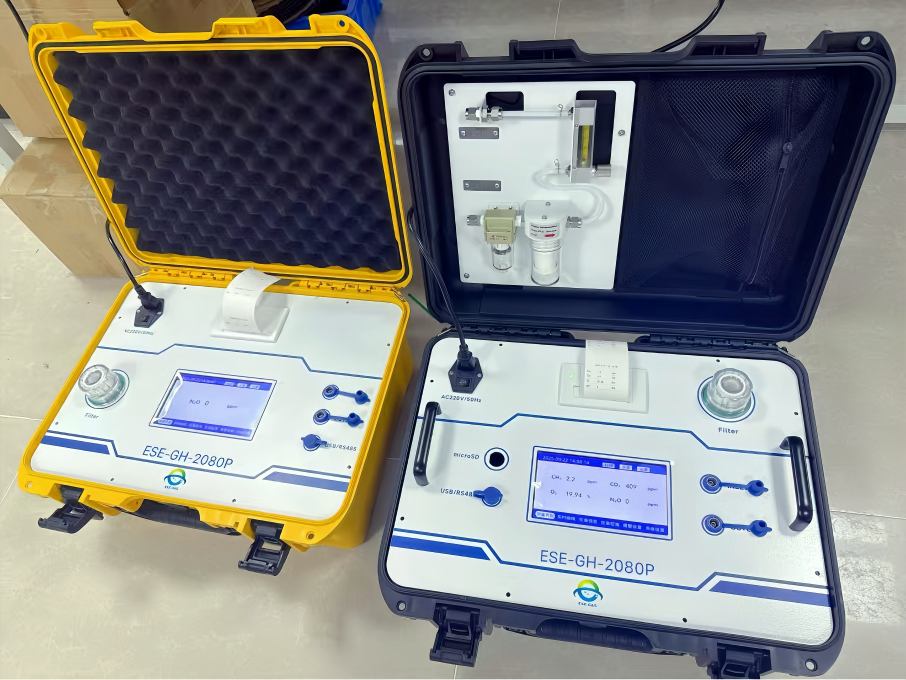

Model ESE-GH-2080P Portable Greenhhouse Gas Analyzer
Measuring principle Infrared absorption (NDIR)
measuring gas N2O: NDIR-GFC, CO2: NDIR, CH4: TDLAS
Measurement range CH4: 0-100ppm. CO2: 0-2000ppm. N2O: 0-100ppm.
Accuracy CH4: ±1%FS. CO2: ±2%FS. N2O: ±1%FS.
Resolution 0.01% vol
Repeatability ≤2%
Optimal Flow Rate 0.7-1.2 L/min
Inlet pressure 2-50kPa
Response Time T90 < 15s
Sample Gas Condition Dust-free, dry, oil-free
Output Interface USB
Display 5-inch TFT LCD touchscreen
Power Supply 220 V AC
Power Consumption 100 W
Weight 10 kg
Operating Temperature 0 – 45°C
Standard Configuration Built-in imported sampling pump Integrated gas pretreatment system Internal printer Self-diagnostic system for sensor status monitoring

Key Features

  • Multi-Gas Measurement in One DeviceSimultaneously measures CH4, N2O, CO2, and optional gases in a single unit, improving efficiency and reducing equipment cost.
  • High Measurement AccuracyAdvanced optical technologies eliminate cross-interference between gases, ensuring precise and reliable results—even in complex flue gas conditions.
  • Low Operating CostRequires no consumables
  • No chemical reagents
  • Minimal maintenance
  • User-Friendly Data ManagementAutomatic data storage
  • Data query and deletion functions
  • Multiple communication interfaces for data transmission to control systems
  • Modular Sensor DesignEach sensor module operates independently, allowing: Easy maintenance, Flexible configuration, and Reduced downtime
  • High AutomationIntegrated gas sampling and pretreatment system enables: Continuous real-time monitoring, Digital and analog outputs, Unattended operation, and Reduced labor costs.
  • Stable Performance & Long Service LifeBuilt-in temperature and pressure compensation ensures measurement stability
  • Wetted parts made of corrosion-resistant materials (stainless steel, PTFE)
  • Long operational lifespan
  • Self-diagnostic function for real-time sensor status monitoring

Portable Greenhouse Gas Analyzer Applications

Applications of Portable Greenhouse Gas Analyzer includes:

Industrial Emission Monitoring

Monitor greenhouse gas emissions from fixed sources in:

  • Steel and metallurgy plants
  • Chemical processing facilities
  • Coal gasification units
  • Power generation plants

Supports emission verification, process optimization, and environmental compliance.

Environmental Monitoring

Ideal for field-based greenhouse gas assessments, including:

  • Urban ambient air monitoring
  • Industrial park emission surveys
  • Fugitive emission and methane leak detection
  • Environmental impact studies

Provides fast, real-time data for air quality and greenhouse gas investigations.

Mobile Monitoring

Suitable for vehicle-mounted monitoring systems used for:

  • Large-area emission screening
  • Roadside environmental inspections
  • Methane leak surveys
  • Mobile greenhouse gas mapping

Enables efficient monitoring across wide geographic areas.

Research & Laboratory Applications

Widely used by:

  • Universities
  • Research institutes
  • Environmental laboratories
  • Climate and ecosystem research centers

Supports greenhouse gas studies, soil flux measurements, and atmospheric research with laboratory-grade accuracy in the field.

The ESE-GH-2080P Portable Greenhouse Gas Analyzer is designed for high-precision measurement of greenhouse gases in industrial emissions and environmental monitoring applications. Utilizing advanced GFC (Gas Filter Correlation) infrared technology and TDLAS (Tunable Diode Laser Absorption Spectroscopy), combined with modern digital signal processing, the analyzer enables simultaneous, real-time measurement of key greenhouse gases such as: CH4 (Methane), N2O (Nitrous) Oxide), and CO2 (Carbon Dioxide).

Optional sensors for CO and O2 are also available for expanded monitoring capabilities.

A greenhouse gas analyzer is an instrument that measures the concentrations of gases such as carbon dioxide (CO₂), methane (CH₄), and nitrous oxide (N₂O). It provides measurement data for industrial emission assessments, environmental monitoring, process control, and greenhouse gas research. The appropriate analyzer depends on the target gases, expected concentrations, and measurement conditions.

The ESEGAS ESE-GH-2080P greenhouse gas analyzer measures CO₂, CH₄, and N₂O simultaneously. Optional CO and O₂ measurement channels are also listed for expanded gas analysis. Gas combinations and measurement ranges should be confirmed when selecting the instrument. CO and O₂ measurements provide additional process information; they should not be classified as direct greenhouse gas measurements.

An optical greenhouse gas analyzer measures how much infrared light a gas sample absorbs at characteristic wavelengths. The instrument uses this absorption signal to calculate gas concentration. Depending on the configuration, measurement technologies can include non-dispersive infrared spectroscopy (NDIR), gas filter correlation (GFC), and tunable diode laser absorption spectroscopy (TDLAS).

Greenhouse gas analyzers are used to investigate emissions from industrial facilities, landfills, wastewater treatment plants, agricultural activities, and energy production. They also support laboratory experiments and environmental research. Each application requires suitable measurement sensitivity and sampling equipment, particularly when measuring small concentration changes or gases in complex sample backgrounds.

Yes. A suitably configured multi-component greenhouse gas analyzer can measure CO₂, CH₄, and N₂O simultaneously from one sample stream. This allows users to compare concentration trends across the three gases during the same measurement period. The ESEGAS ESE-GH-2080P is listed with simultaneous measurement of these components.

The required measurement range and detection limit depend on the expected concentration and the smallest change you need to detect. Industrial source measurements and atmospheric background studies have different requirements. Atmospheric CH₄ and N₂O occur at much lower concentrations than CO₂, making sensitivity especially important. Compare detection limit, precision, accuracy, and drift; display resolution alone does not establish measurement capability.

Extractive greenhouse gas analyzers may need sample pretreatment to meet their inlet requirements. The ESEGAS ESE-GH-2080P specifies a dry, dust-free, and oil-free sample. Depending on the source, the sampling system may require filtration, moisture management, and pressure or flow control. Sample conditioning must preserve the target gas concentrations and establish a consistent wet or dry measurement basis.

A greenhouse gas analyzer is typically checked using suitable zero gas and certified reference gas mixtures with known concentrations. Follow the instrument manual for gas composition, inlet conditions, calibration steps, and adjustment procedures. The checking frequency should reflect instrument stability, operating conditions, and the project’s quality requirements. Keep calibration records to track measurement performance over time.

A compatible greenhouse gas analyzer can provide concentration measurements for a chamber-based soil flux system. Calculating flux also requires the concentration change over time, effective chamber volume, soil surface area, temperature, and pressure. Analyzer sensitivity, response time, sample flow, and chamber mixing must suit the experiment. Concentration readings alone are insufficient to determine soil greenhouse gas flux.

Provide the target gases, expected concentration ranges, required detection limits and accuracy, and application details. Include sample temperature, pressure, humidity, dust or oil content, measurement duration, and installation environment. For an ESEGAS quotation, also specify whether you need portable measurements, sampling accessories, data logging, communication interfaces, or integration with an existing monitoring system.

Still having questions? Please just contact us directly!

Technical Specification

Model ESE-GH-2080P Portable Greenhhouse Gas Analyzer
Measuring principle Infrared absorption (NDIR)
measuring gas N2O: NDIR-GFC, CO2: NDIR, CH4: TDLAS
Measurement range CH4: 0-100ppm. CO2: 0-2000ppm. N2O: 0-100ppm.
Accuracy CH4: ±1%FS. CO2: ±2%FS. N2O: ±1%FS.
Resolution 0.01% vol
Repeatability ≤2%
Optimal Flow Rate 0.7-1.2 L/min
Inlet pressure 2-50kPa
Response Time T90 < 15s
Sample Gas Condition Dust-free, dry, oil-free
Output Interface USB
Display 5-inch TFT LCD touchscreen
Power Supply 220 V AC
Power Consumption 100 W
Weight 10 kg
Operating Temperature 0 – 45°C
Standard Configuration Built-in imported sampling pump

Integrated gas pretreatment system

Internal printer

Self-diagnostic system for sensor status monitoring
