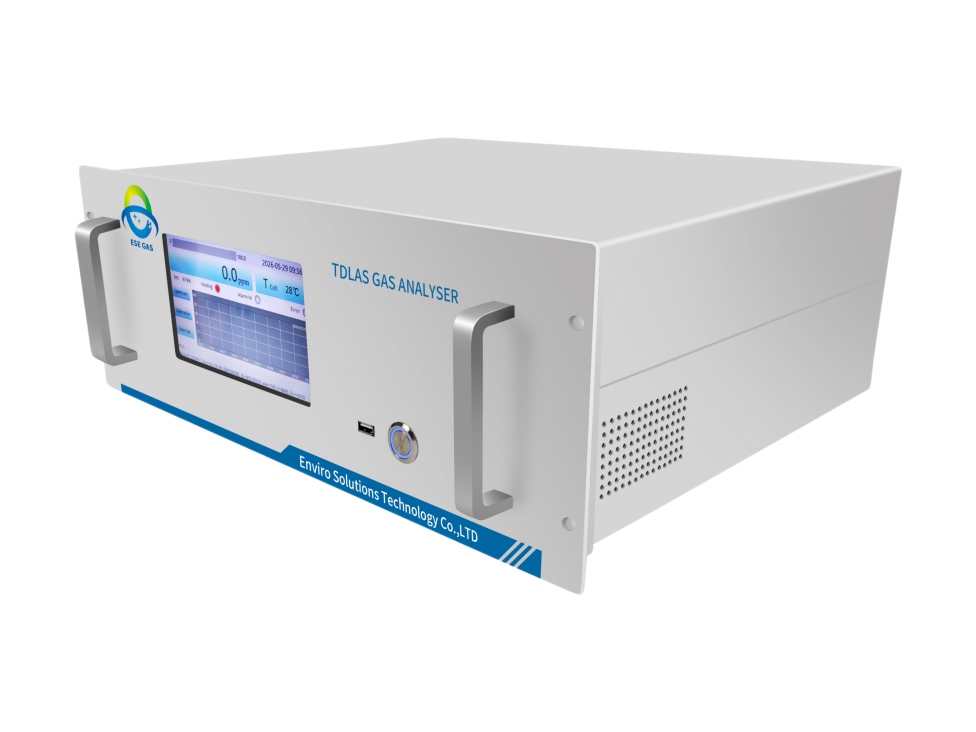

ESE-LASER-100 Ammonia (NH3) Analyzer for Ammonia Slip & Emission Monitoring

ESE-LASER-100 Ammonia (NH3) Analyzer for Ammonia Slip & Emission Monitoring

Online TDLAS Gas Analyzer
Categories , Tag

ESE-LASER-100 Ammonia (NH3) Analyzer for Ammonia Slip & Emission Monitoring

Introduction

TDLAS-based NH₃ measurement for SCR/SNCR ammonia slip, industrial emissions and process gas monitoring.

Technology: TDLAS

Configurations: Online Gas Analyzer | Wall-mounted Gas Monitoring System | Online Gas Monitoring System

 Want to see more details, watch our videos!

Ask For A Quote !
Download PDF

Ammonia (NH3) Analyzer Measuring Principle

The ESE-LASER Series Online Ammonia (NH₃) Analyzer uses Tunable Diode Laser Absorption Spectroscopy (TDLAS) to measure ammonia concentrations in industrial process gases and flue gas. TDLAS measures ammonia by detecting its selective absorption of laser light at specific wavelengths. The analyzer measures changes in laser intensity and calculates the NH₃ concentration using spectral absorption analysis. This technology enables selective, accurate, and rapid ammonia measurement, with configurable measurement ranges extending from percentage concentrations down to ppb levels.

Ammonia (NH3) Analyzer Specification

Parameter Value
Measured Gas Ammonia(NH3)
Measurement Principle Tunable Diode Laser Absorption Spectroscopy (TDLAS)
Measuring Range 10ppm/1000ppm/40%
Measurement Accuracy ±1% FS
Repeatability ±1% FS
Resolution 0.1ppm
Drift ≤1.5% FS
T90 Response Time Less than 15S (at gas flow rate of 3 L/min).
Refresh Rate 1s
Power Supply 110-240VAC / 50/60Hz 120W.
Analog Output 4-20mA
Digital Output RS232/485
Relay Output Load capacity: AC/DC 24 V, 1 A
Warm-Up Time 30min
Maximum Sample Gas Humidity 20vol%
Sample Gas Flow Rate 1.5-3.0 L/min
Sample Gas Inlet Pressure <10 kPa; outlet connected to atmosphere
Sample Gas Inlet Temperature 190 °C
Sample Gas Connection Ø6 mm Ferrule Fitting
Dimensions (W × L × H) 430mm × 450mm × 180mm
Weight 10kg

Key Features

  • High Selectivity: Uses TDLAS technology to target specific NH₃ absorption lines, minimizing interference from other gases and enabling selective ammonia measurement.
  • Wide Measurement Range: Supports NH₃ measurement from ppb levels to percentage concentrations, depending on the configured measurement range and application.
  • Fast Response Time: Provides rapid, real-time monitoring of ammonia concentrations, allowing operators to detect concentration changes and respond promptly.
  • Non-Contact Optical Measurement: Uses a laser beam passing through a gas cell or process duct to measure NH₃ without direct contact between the optical sensing components and the gas stream.
  • High Accuracy and Precision: Combines narrow-linewidth laser technology with spectral analysis algorithms to deliver accurate and repeatable NH₃ measurements.
  • Low Maintenance and Long-Term Stability: Features a laser-based optical measurement design with minimal moving parts, reducing maintenance requirements and supporting stable, continuous operation.
  • Compact and Modular Design: Offers flexible installation options for integration into existing monitoring systems or standalone industrial applications.
  • Continuous Ammonia Slip Monitoring: Continuously measures residual NH₃ in SCR and SNCR denitrification systems, supporting ammonia injection control and NOₓ emission reduction.
  • Wide Industrial Applications: Suitable for ammonia monitoring in metallurgy, coking, power generation, cement production, and biomass-fired combustion processes.

Available NH₃ Configurations:

☑ ESE-LASER-500 Trace Ammonia(NH3)Gas Analyzer

☑ ESE-LASER-10M Ammonia(NH3) Gas OEM Module

☑ ESE-LASER-500 Trace Ammonia(NH3)Gas Analyzer

☑ ESE-LASER-10M Ammonia(NH3) Gas OEM Module

Tailored Online TDL Gas Analyzer (Monitor one gas only)

  • ESE-LASER-100 Online TDL NH3 Analyzer (050/500ppm; 0-1000ppb)
  • ESE-LASER-200 Online TDL HCl Analyzer (0-20/200ppm; 0-1000ppb)
  • ESE-LASER-300 Online TDL HF Analyzer (0-10/100pm; 0-200ppb)
  • ESE-LASER-500 Online TDL O2 Analyzer (0-100%)
  • ESE-LASER-600 Online TDL H2S Analyzer (0-30%; 0-500ppm)
  • ESE-LASER-710 Online TDL CO Analyzer (0-100%; 0-500ppm)
  • ESE-LASER-720 Online TDL CO2 Analyzer (0-100%; 0-1000ppm)
  • ESE-LASER-730 Online TDL CH4 Analyzer (0-100%; 0-20ppm)

Still having questions? Please just contact us directly!
