Flue Gas Analyzers

Flue Gas Analyzers

Flue Gas Analyzers

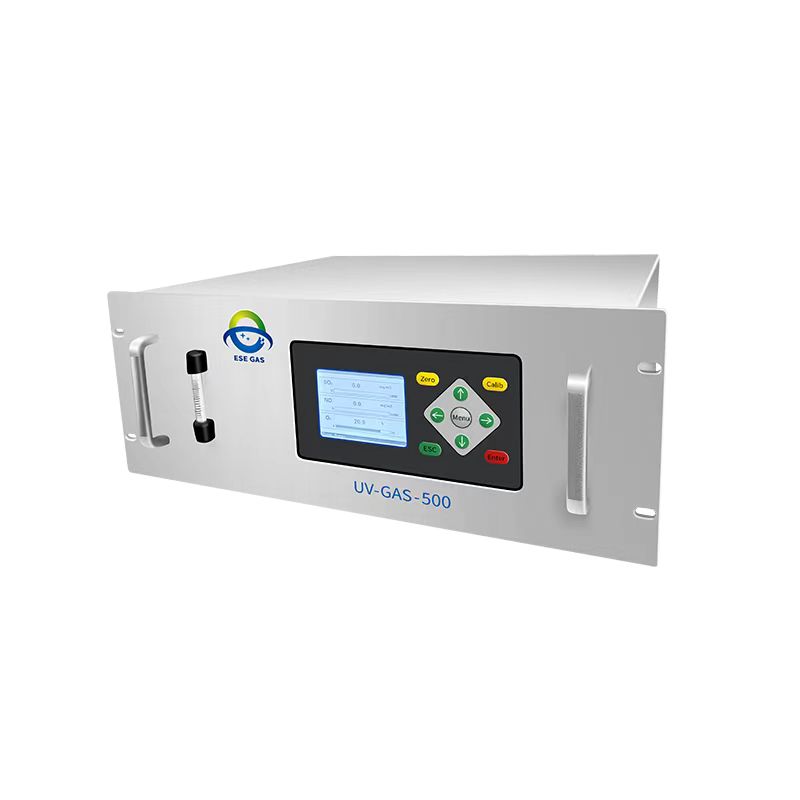

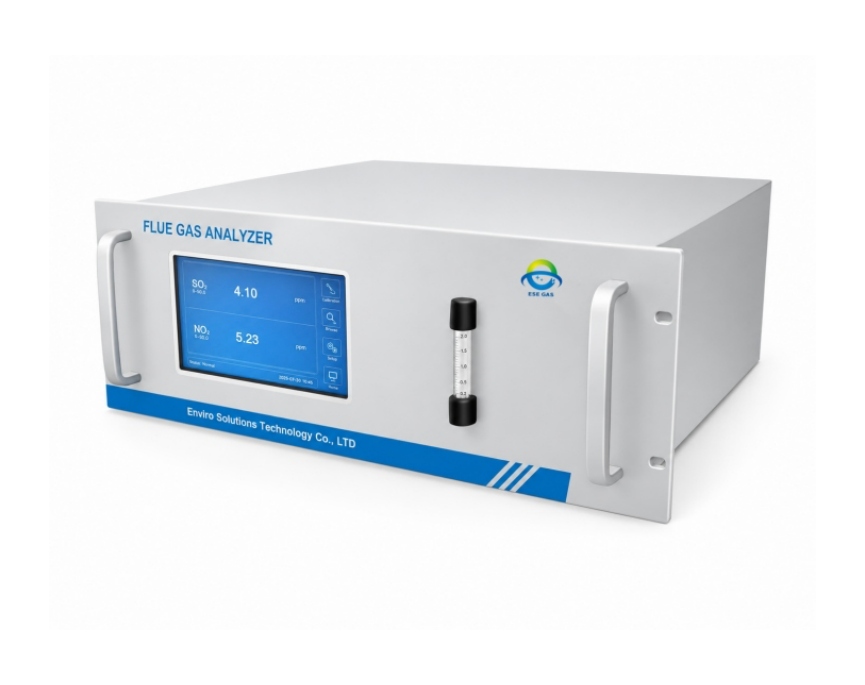

The Flue Gas Analyzers UV-GAS-500 are specialized instruments used for emission monitoring and to measure various gases such as SO2, NO, NO2, CL2, H2S and O3. They can also be equipped with an optional gas sensor CO and CO2 for further CEMS (Continuous Emission Monitoring System) monitoring.

☑  We can measure SO2/NO/NO2/CO/CO2/O2 most five gases in one unit

Getting NOX by directly measure NO and NO2 without a NO2-NO converter





  • The Flue Gas Analyzers UV-GAS-500  provide accurate and reliable readings in a variety of environmental conditions, allowing for better compliance with regulatory standards. For higher accuracy, the UV-GAS-500 can be customized to measure different range of gases or even multiple gases simultaneously. It is one of the most advanced solutions available for emission monitoring today. It is a reliable, cost-effective and easy to use instrument that can help organizations reduce their environmental footprint.
  • CO,CO2 based on infrared correlation filter technology (GFC) and non-dispersive infrared absorption method (NDIR),Plus self-designed long optical path gas absorption cell(L-cell)wavelength filter,an infrared detector,and high -precision signal processing circuit composition ,to complete the quantitative analysis of gas in the infrared band.
  • Flue Gas Analyzers UV-GAS-500 can be used in a wide range of industries and applications, from industrial processes such as combustion engine testing and boiler performance monitoring to research laboratories. In addition, they are also often used for regulatory compliance purposes, providing accurate readings of emissions levels in order to ensure that companies meet mandated environmental standards. With the right emissions gas analyzer, businesses can not only ensure compliance but also actively monitor their emissions levels to make sure that their processes are running as efficiently and sustainably as possible.
  • Waste incineration flue gas emission detection and other fields
  • Industrial process gas analysis
  • Flue gas emission monitoring




Model Technology Standard Low Emission Ultra-low Emission
Range SO2/NO/NO2 UV-DOAS 0-300-3000ppm 0-100-300ppm 0-50ppm
Range O2 ECD 0-5% to 0-25% vol 0-5% to 0-25% vol 0-5% to 0-25% vol
Linearity ≤±1.5%F.S.
Repeatability ≤±0.5%F.S.
Zero Drift ≤±2%F.S/7d
Span Drift ≤±2%F.S/7d
Output RS485/4-20mA output
Response time(T90) ≤10S ≤30S ≤30S



Model Technology Standard Low Emission Ultra-low Emission
Range CO GFC 0-2000ppm 0-1000ppm 0-100ppm
Range CO2 NDIR 0-5% to 0-25% vol 0-5% to 0-25% vol 0-5% to 0-25% vol
Linearity ≤±2%F.S.
Repeatability ≤±1%F.S.
Zero Drift ≤±2%F.S/7d
Span Drift ≤±2%F.S/7d
Output RS485/4-20mA output
Warming Time 60mins
Response time(T90) ≤60S

An emissions gas analyzer is a specialized instrument used to measure and analyze the composition and concentration of gases emitted from various sources, such as vehicles, industrial processes, and combustion systems. These analyzers are designed to quantify the emissions of pollutants and greenhouse gases to assess air quality, evaluate compliance with environmental regulations, and support emission reduction efforts.

The importance of emissions gas analyzers can be summarized as follows:

  1. Air Quality Monitoring: Emissions gas analyzers play a critical role in monitoring and assessing air quality by measuring the concentrations of pollutants in the atmosphere. They can detect and quantify pollutants such as carbon monoxide (CO), nitrogen oxides (NOx), sulfur dioxide (SO2), particulate matter (PM), volatile organic compounds (VOCs), and other harmful gases. Accurate measurements help identify pollution sources, evaluate the impact on human health and the environment, and support the development of air quality improvement strategies.
  2. Regulatory Compliance: Emissions gas analyzers are used to measure and verify compliance with environmental regulations and emission standards. Industries, power plants, vehicles, and other emission sources are required to report and control their pollutant emissions. Analyzers provide accurate measurements of pollutant concentrations, ensuring compliance with regulatory limits and enabling organizations to demonstrate adherence to environmental standards.
  3. Emission Inventories: Emissions gas analyzers are essential for developing emission inventories to estimate the amount of pollutants released into the atmosphere. By measuring pollutant concentrations and emission factors, these analyzers provide data that helps quantify the emissions from specific sources or sectors. Emission inventories are crucial for understanding the sources of pollution, guiding policy decisions, and assessing the effectiveness of emission reduction measures.
  4. Source Identification and Apportionment: Emissions gas analyzers aid in identifying and apportioning pollution sources. By analyzing the composition and isotopic signatures of emitted gases, these analyzers can help distinguish between different emission sources and determine their contributions to overall pollution levels. This information is valuable for implementing targeted control measures and allocating emission reduction efforts effectively.
  5. Emission Reduction Strategies: Emissions gas analyzers support the development and evaluation of emission reduction strategies. By providing real-time and accurate measurements, these analyzers enable the assessment of the effectiveness of emission control technologies and policies. They help identify areas where improvements can be made, optimize the operation of pollution control systems, and guide decision-making for achieving sustainable emission reductions.

Emissions gas analyzers employ various measurement techniques, including infrared spectroscopy, gas chromatography, laser-based spectroscopy, and electrochemical sensors, depending on the specific gases and pollutants being analyzed.

Overall, emissions gas analyzers are crucial tools for monitoring air quality, ensuring regulatory compliance, developing emission inventories, identifying pollution sources, and guiding emission reduction efforts. They enable policymakers, regulatory agencies, industries, and researchers to make informed decisions for improving air quality and mitigating the environmental impacts of pollutant emissions.

Flue gas analyzers are specialized instruments used to measure and analyze the composition of gases emitted from combustion processes, particularly those generated by boilers, furnaces, and other industrial heating systems. These analyzers are designed to assess the efficiency of combustion, monitor pollutant emissions, and optimize the performance of combustion equipment.

The importance of flue gas analyzers can be summarized as follows:

  1. Combustion Efficiency Analysis: Flue gas analyzers are used to evaluate the efficiency of combustion processes by measuring parameters such as oxygen (O2) concentration, carbon dioxide (CO2) content, and excess air levels. These measurements allow operators to optimize combustion conditions, adjust air-to-fuel ratios, and minimize energy waste. Maximizing combustion efficiency results in reduced fuel consumption, lower operating costs, and decreased environmental impact.
  2. Emissions Monitoring: Flue gas analyzers play a crucial role in monitoring and quantifying pollutant emissions from combustion processes. They measure concentrations of pollutants such as carbon monoxide (CO), nitrogen oxides (NOx), sulfur dioxide (SO2), particulate matter (PM), and other harmful gases. Accurate emission measurements help ensure compliance with environmental regulations, assess the environmental impact of combustion activities, and guide efforts to reduce emissions.
  3. Compliance with Environmental Standards: Flue gas analyzers are essential for ensuring compliance with emissions standards and regulations. By providing real-time and accurate measurements of pollutant concentrations, these analyzers enable operators to adjust combustion parameters and implement control measures to meet regulatory requirements. They also assist in reporting emissions data to regulatory agencies.
  4. Equipment Maintenance and Optimization: Flue gas analyzers aid in the maintenance and optimization of combustion equipment. By continuously monitoring and analyzing flue gas composition, analyzers help identify issues such as incomplete combustion, inefficient burner performance, or the presence of contaminants that may lead to equipment malfunction or reduced efficiency. Timely detection of these problems allows for corrective actions to be taken, optimizing equipment performance and extending its lifespan.
  5. Safety Monitoring: Flue gas analyzers contribute to safety in combustion processes by monitoring the presence of potentially hazardous gases, such as carbon monoxide (CO). These analyzers provide real-time measurements, enabling the detection of gas leaks, combustion abnormalities, or other safety hazards. Timely alerts and alarms help prevent accidents, protect personnel, and ensure safe operation.

Flue gas analyzers employ various measurement techniques, including infrared spectroscopy, electrochemical sensors, zirconia sensors, and laser-based techniques, depending on the specific gases and parameters being analyzed.

In summary, flue gas analyzers are essential tools for evaluating combustion efficiency, monitoring pollutant emissions, ensuring regulatory compliance, optimizing equipment performance, and enhancing safety in combustion processes. They provide real-time and accurate measurements, enabling operators to make informed decisions, reduce emissions, and improve the overall efficiency and environmental performance of combustion systems.

  • The Flue Gas Analyzers UV-GAS-500  provide accurate and reliable readings in a variety of environmental conditions, allowing for better compliance with regulatory standards. For higher accuracy, the UV-GAS-500 can be customized to measure different range of gases or even multiple gases simultaneously. It is one of the most advanced solutions available for emission monitoring today. It is a reliable, cost-effective and easy to use instrument that can help organizations reduce their environmental footprint.
  • CO,CO2 based on infrared correlation filter technology (GFC) and non-dispersive infrared absorption method (NDIR),Plus self-designed long optical path gas absorption cell(L-cell)wavelength filter,an infrared detector,and high -precision signal processing circuit composition ,to complete the quantitative analysis of gas in the infrared band.
  • Flue Gas Analyzers UV-GAS-500 can be used in a wide range of industries and applications, from industrial processes such as combustion engine testing and boiler performance monitoring to research laboratories. In addition, they are also often used for regulatory compliance purposes, providing accurate readings of emissions levels in order to ensure that companies meet mandated environmental standards. With the right emissions gas analyzer, businesses can not only ensure compliance but also actively monitor their emissions levels to make sure that their processes are running as efficiently and sustainably as possible.
  • Waste incineration flue gas emission detection and other fields
  • Industrial process gas analysis
  • Flue gas emission monitoring





Measuring carbon dioxide (CO2) is important for understanding the role it plays in the environment and its effect on climate change. CO2 is a major component of Earth’s atmosphere, and it traps heat like a blanket, causing global temperatures to rise. Too m uch CO2 can lead to drastic changes in our weather patterns and ecosystems, so monitoring its levels is essential for predicting future climate conditions. Additionally, measuring CO2 can help us better understand our impact on the environment and make informed decisions about how to reduce emissions and slow down down down down down global warming. By analyzing CO2 data over time, we can develop strategies to mitigate the effects of climate change and ensure a sustainable future.

Before industrialization, the global average annual atmospheric carbon dioxide concentration was 278ppm (1ppm is one part per million). In 2012, the global annual average atmospheric carbon dioxide concentration was 393.1ppm. By April 2014 , the monthly average carbon dioxide concentration in the northern hemisphere atmosphere exceeded 400ppm for the first time. . 2. Global climate warming, the continuous aggravation of the atmospheric greenhouse effect leads to global climate warming, resulting in a series of global climate problems that cannot be predicted by today’s science. According to the International Climate Change Economics Report, if human beings maintain the current way of life, by 2100, there will be a 50% chance that the global average temperature will rise by 4°C.
