Introduction

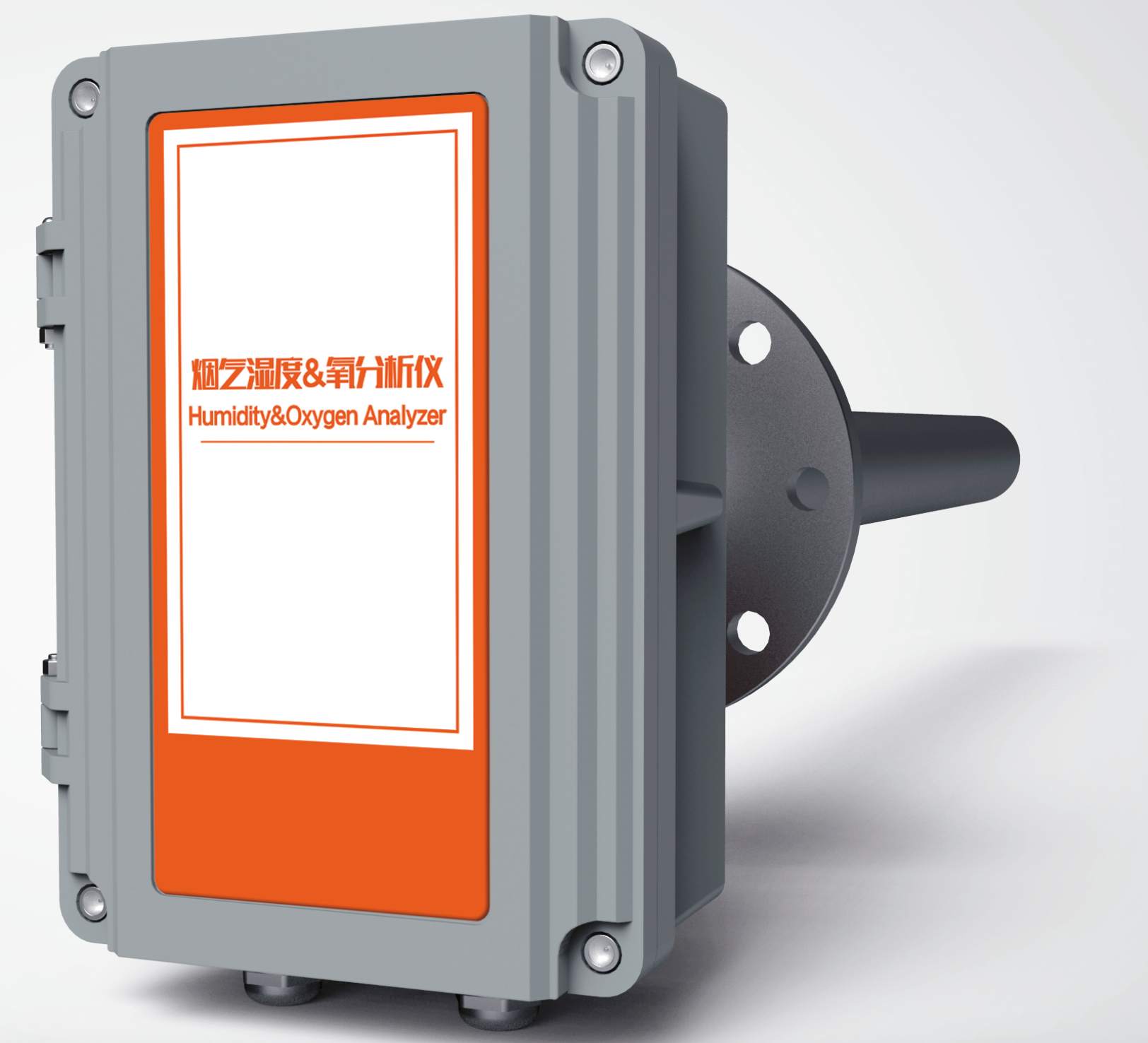

The ESE-HO-1000 Oxygen/Humidity Analyzer adopts the third generation of solid electrolyte humidity oxygen measurement technology. The product has the characteristics of high temperature resistance, high measurement accuracy, strong corrosion resistance, fast response speed and stable and reliable performance, and has better performance in the continuous online measurement of humidity & oxygen under harsh working conditions such as heavy metals, high corrosion, high humidity, and organic interference in volatile organic compounds VOCS.
Meet the technical requirements for flue gas humidity & oxygen on-line monitoring in HJ75-2017 and HJ76-2017 standards.
| Measurement Principles | Limit current method |
|---|---|
| Measuring range | H2O 0~40%VOL O2 0~25%VOL |
| Measure accuracy | H2O ±2% F.S. O2 ±1% F.S. |
| Measure accuracy | ±1% F.S. |
| Response time | T90<20s |
| Sampling mode | Plug-in |
| Installation method | Standard DN65 flange, can be customized |
| Probe length | Standard length 800mm, can be customized |
| Flue gas temperature | 0~250℃, 0~500℃ (Can be customized) |
| Display method | LCD screen display, inside the instrument shell |
| Power supply | 220VAC±10% 50HZ, 24W |
| Environmental temperature | -20℃～50℃ |
| Environmental humidity | 5%~100% RH |
| Protection level | IP65 |
| Storage temperature | -40℃～70℃ |
| Storage humidity | 5%~95% RH |
| Power failure protection | Power-off blowback self-protection (optional) |
| Select parts | Options | Code |
|---|---|---|
| Probe length | 400mm | S |
| 800mm | M | |
| 1500mm | L | |
| Sensors | Universal type | Y |
| High temperature type | H | |
| Selection examples | ESE-HO-1000 | |
| Instruments | ESE-HO-1000 Oxygen/Humidity analyzer | |
| Probe length | 400mm probe (can be customized) | |
| Sensors | High-temperature sensors (Above 400℃ can be customized) | |
