Industrial combustion systems often suffer from inefficiencies and harmful emissions. Zirconia oxygen analyzers provide real-time oxygen measurement, unlocking the key to precise combustion control and significant performance gains.

Zirconia oxygen analyzers measure oxygen concentration in flue gases, enabling real-time combustion optimization. This closed-loop control approach reduces fuel consumption, lowers emissions, and increases operational safety across industrial furnace systems.

As industrial sectors pursue cleaner, safer, and more cost-effective operations, zirconia oxygen analyzers are becoming vital components in combustion systems. This article explores how they work, why accurate oxygen measurement matters, and their role in process optimization.

What Is the Operating Principle of a Zirconia Oxygen Analyzer?

Inconsistent combustion performance often results from unreliable gas measurement technologies.Traditional sensors may lack the precision or responsiveness needed for real-time control.

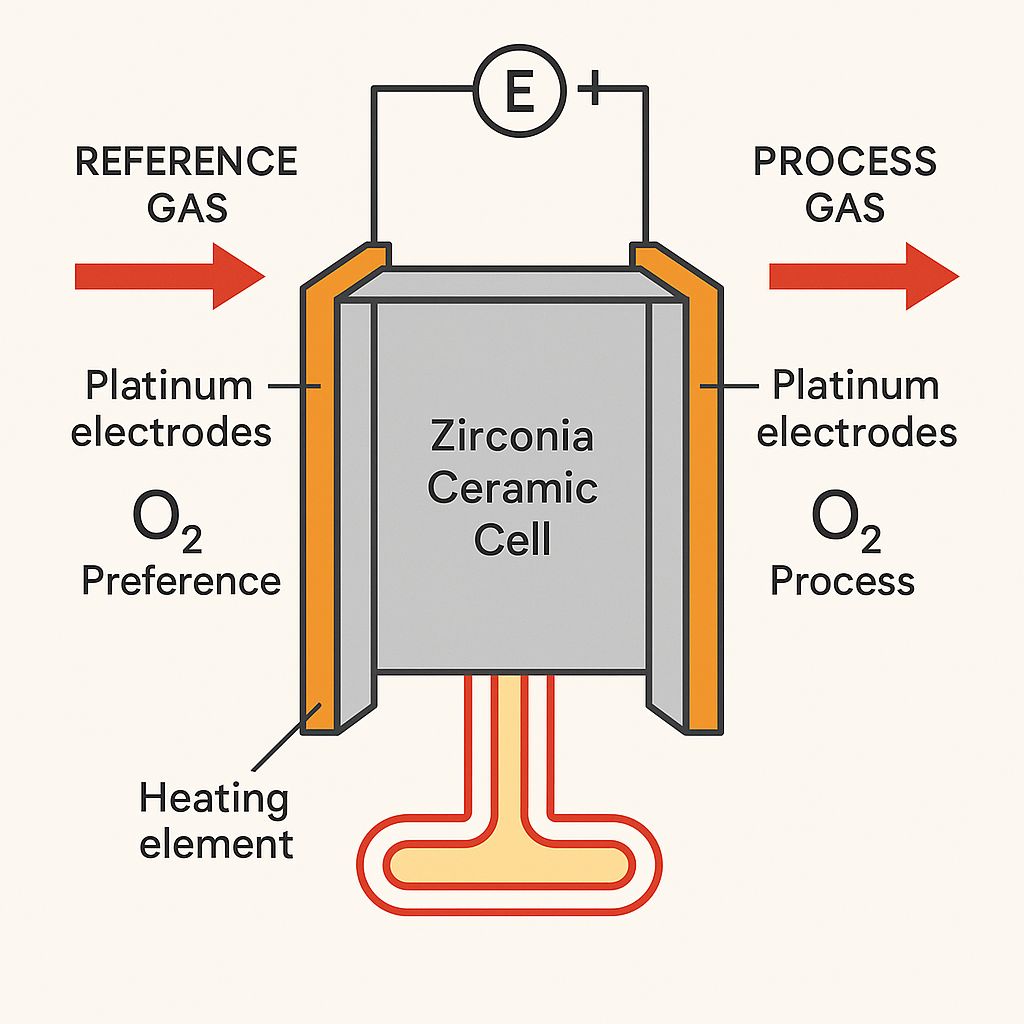

A zirconia oxygen analyzer operates on the principle of solid-state electrochemistry, utilizing the unique oxygen ion conductivity of stabilized zirconium dioxide (ZrO₂) at high temperatures. The core of the sensor is a zirconia ceramic cell, typically shaped as a tube or disc, coated on both sides with a porous platinum electrode. One side of this cell is exposed to a known reference gas, usually ambient air with a fixed oxygen concentration of approximately 20.9%, while the other side is in contact with the process gas—often flue gas from a combustion chamber. When the analyzer is heated to its operational temperature, typically between 600°C and 800°C, the zirconia material becomes an oxygen ion conductor. Under these conditions, a difference in the partial pressure of oxygen across the zirconia membrane causes oxygen ions to migrate through the solid electrolyte from the higher concentration side (usually the air side) to the lower concentration side (the flue gas side). This ion movement generates an electrochemical potential (voltage) across the platinum electrodes, and the magnitude of this voltage is governed by the Nernst equation. The relationship between the voltage and the oxygen partial pressure difference is logarithmic, enabling the analyzer to calculate the oxygen concentration in the flue gas with high accuracy. Because the voltage output is continuous and responds rapidly to changes in oxygen levels, zirconia analyzers can provide real-time data for combustion control systems. Furthermore, because zirconia is chemically and thermally stable under harsh conditions, the sensor can be mounted directly in the flue gas stream, eliminating the need for complex sample conditioning systems.

Some advanced designs also include automatic calibration, blowback cleaning systems, and built-in temperature regulation, further enhancing performance and reducing maintenance. In essence, the zirconia oxygen analyzer transforms a naturally occurring electrochemical reaction into a highly precise, rugged, and responsive industrial tool, ideally suited for optimizing combustion in power plants, refineries, steel mills, and other high-temperature environments.

Why Is Accurate Oxygen Measurement Crucial in Industrial Combustion?

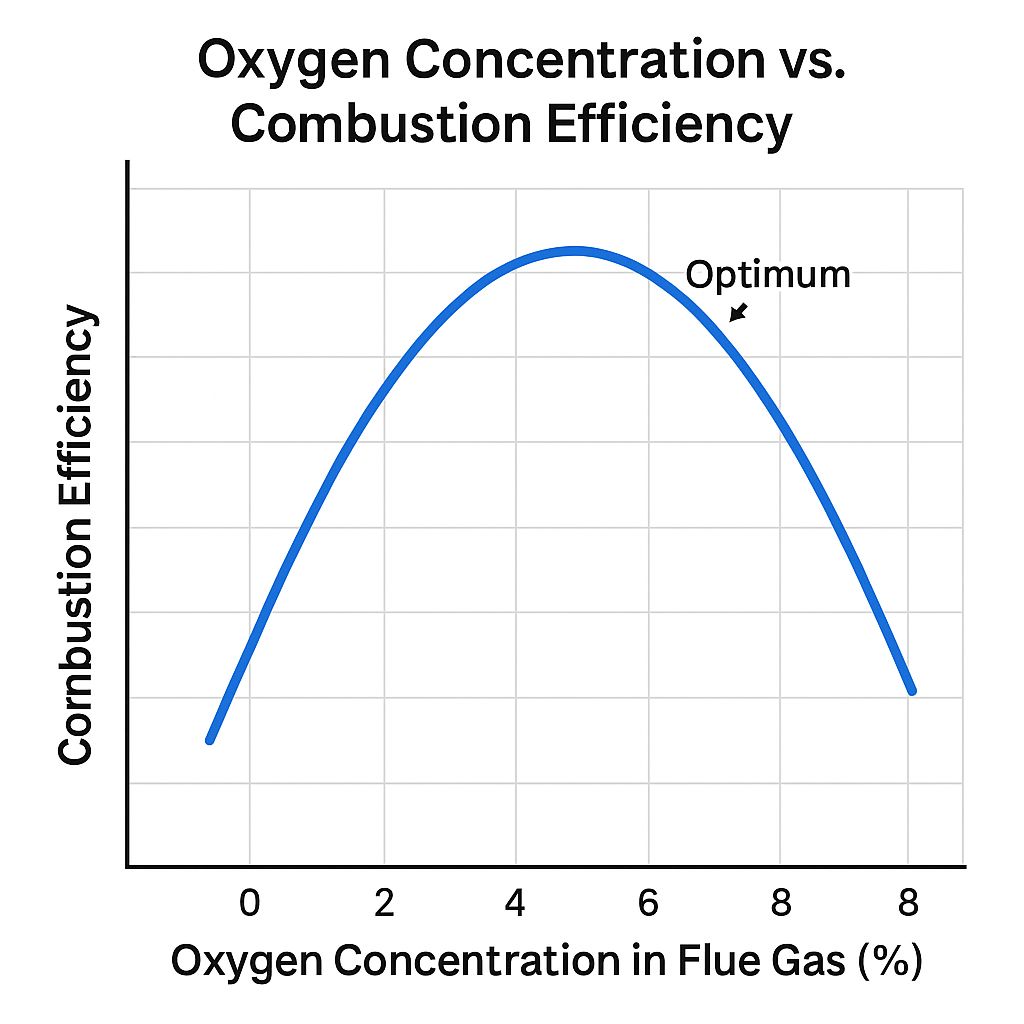

Accurate oxygen measurement is fundamental to the efficiency, safety, and environmental compliance of industrial combustion systems. In any combustion process—whether in power plants, petrochemical refineries, steel furnaces, or cement kilns—the optimal air-to-fuel ratio determines the performance and sustainability of the entire operation. Measuring the oxygen concentration in flue gas enables operators to calculate the “excess air” present during combustion, which directly influences the combustion efficiency and the generation of pollutants such as carbon monoxide (CO), nitrogen oxides (NOₓ), and unburned hydrocarbons.

Combustion requires a precise stoichiometric balance between fuel and air: theoretically, a specific amount of oxygen is required to completely oxidize a given quantity of fuel. However, in practice, a certain amount of excess air is introduced to ensure complete combustion and prevent dangerous conditions such as soot formation or carbon monoxide accumulation. This excess air is what zirconia oxygen analyzers help control—and the benefits of doing so accurately are numerous and measurable:

1.Maximized Thermal Efficiency

Operating with too much excess air leads to the unnecessary heating of nitrogen and unreacted oxygen, which do not contribute to combustion but still absorb thermal energy. This heat is lost through the stack, reducing the overall thermal efficiency of the system. For example, every 1% of excess oxygen above the optimum level can lead to a 0.5%–1% increase in fuel consumption. Precise oxygen control enables the system to run closer to its ideal efficiency point, reducing fuel costs significantly.

2.Minimized Pollutant Emissions

Inaccurate oxygen levels can cause either incomplete or over-oxidized combustion. Insufficient oxygen leads to the formation of carbon monoxide (CO) and soot, both of which are harmful pollutants. On the other hand, excessive oxygen promotes high flame temperatures that facilitate the formation of thermal NOₓ—another regulated pollutant. Accurate, real-time oxygen measurement allows for fine-tuning of the combustion process, reducing both CO and NOₓ emissions and helping facilities comply with environmental standards like the European Industrial Emissions Directive (IED) or U.S. EPA regulations.

3.Improved Operational Safety

In combustion chambers, particularly those operating under variable loads or using mixed-fuel systems, oxygen levels can fluctuate rapidly. A drop in oxygen can signal incomplete combustion, which raises the risk of explosive gas buildup, while a sudden spike may indicate system leaks or control failure. Real-time, accurate oxygen measurement enables early detection of these deviations, triggering alarms or automatic shutdowns to prevent safety hazards.

4.Extended Equipment Lifespan

Poor combustion control—stemming from inaccurate oxygen monitoring—can lead to high-temperature corrosion, slag buildup, and thermal stress in boilers, heat exchangers, and refractory linings. Maintaining oxygen at optimal levels ensures more stable combustion temperatures and cleaner exhaust gases, preserving the integrity of expensive industrial equipment and reducing maintenance intervals.

5.Essential for Automated Combustion Control Systems

Modern industrial furnaces and boilers are equipped with PLC or DCS-based combustion management systems that rely on continuous feedback signals to adjust air dampers, fuel valves, or burner firing rates. The oxygen analyzer provides the most critical feedback signal in this loop. Without accurate oxygen input, the entire control strategy collapses, leading to inefficiencies and increased operational risk. Zirconia oxygen analyzers, with their rapid response time and minimal drift, are ideal for this role, especially under rapidly changing load or fuel conditions.

In short, accurate oxygen measurement isn’t merely a helpful metric—it is the foundation of modern combustion engineering. Whether the goal is to reduce energy costs, meet emission targets, enhance system safety, or prolong asset life, maintaining optimal oxygen levels through real-time zirconia analysis is a technical imperative in any industrial combustion process.

How Do Zirconia Oxygen Analyzers Enable Combustion Optimization?

Zirconia oxygen analyzers play a pivotal role in optimizing industrial combustion by providing fast, accurate, and continuous oxygen measurements directly from the flue gas stream. This real-time data serves as a foundation for automated combustion control systems to maintain an optimal air-fuel ratio, thereby enhancing thermal efficiency, reducing emissions, and ensuring stable burner operation.

In combustion processes, the goal is to supply just enough oxygen to completely burn the fuel without leaving excess air or generating carbon monoxide (CO) or unburned hydrocarbons. Too little air results in incomplete combustion, creating pollutants and reducing heat output. Too much air lowers the flame temperature and leads to thermal energy loss through the stack. Because combustion conditions are dynamic—due to changes in fuel composition, load demand, or air density—manual tuning or infrequent sampling cannot maintain ideal efficiency. This is where zirconia analyzers offer significant advantages.

Installed directly in flue gas ducts or near burners, zirconia sensors continuously monitor the oxygen concentration with a response time typically under two seconds. This fast feedback loop allows control systems to dynamically adjust dampers, burner registers, or fuel valves in real-time. By doing so, the process maintains a consistently optimal level of excess oxygen—typically around 2% to 3% for natural gas and slightly higher for heavier fuels. This control method, known as oxygen trim control, is one of the most effective strategies for reducing fuel consumption in large-scale thermal systems.

Beyond fuel savings, combustion optimization through zirconia oxygen analysis also reduces the formation of nitrogen oxides (NOₓ) by preventing excessive combustion temperatures and stabilizing flame behavior. Additionally, maintaining ideal combustion conditions helps avoid soot formation and corrosive deposits, which can damage boiler tubes, heat exchangers, and refractory surfaces.

Some advanced zirconia systems integrate with distributed control systems (DCS) and offer digital diagnostics, sensor health monitoring, and predictive maintenance capabilities. These features not only support combustion optimization but also enhance plant reliability and reduce unplanned downtime. Furthermore, the ruggedness of zirconia elements—being resistant to high temperatures, particulates, and corrosive gases—means they can perform effectively in harsh industrial environments such as coal-fired boilers, glass melting furnaces, and rotary kilns.

In summary, zirconia oxygen analyzers are not just measurement devices; they are active enablers of intelligent combustion. By delivering accurate oxygen data in real-time and integrating seamlessly with automated control systems, they drive continuous process optimization, achieving a balance between energy efficiency, environmental compliance, and operational safety.

In Which Industrial Applications Are Zirconia Oxygen Analyzers Most Valuable?

Zirconia oxygen analyzers are widely regarded as indispensable instruments in industries where combustion plays a central role in energy generation, material transformation, or chemical processing. Their high-temperature resilience, fast response time, and long-term stability make them particularly valuable in harsh and variable industrial environments where precision oxygen control directly impacts efficiency, product quality, safety, and environmental compliance.

Below are the key industrial sectors where zirconia oxygen analyzers provide the greatest value:

1. Power Generation (Coal, Gas, and Biomass Boilers)

In power plants, especially those using pulverized coal, gas turbines, or biomass-fired boilers, combustion control is essential for maximizing thermal efficiency and reducing emissions. Zirconia oxygen analyzers are typically installed in the flue gas path near economizers or air preheaters to monitor residual oxygen. By enabling precise oxygen trim control, these sensors help minimize excess air, optimize boiler efficiency, reduce fuel consumption, and limit the formation of CO and NOₓ. Their robust design allows for continuous operation in environments with high dust load and temperatures exceeding 600°C.

2. Petrochemical and Refining Industries

In refineries and chemical plants, process heaters, reformers, and cracking furnaces require tight combustion control to ensure consistent heating profiles and product yield. Zirconia oxygen analyzers provide rapid, real-time feedback to modulate burner air supply, which is critical for handling variable hydrocarbon feedstocks. In such high-value processes, even minor combustion inefficiencies can lead to significant product losses or safety hazards. Moreover, maintaining correct oxygen levels minimizes risks of carbon buildup or flame instability that could compromise reactor performance.

3. Iron and Steel Industry

Steel manufacturing involves numerous combustion-based processes such as reheating furnaces, annealing lines, and blast furnace stoves. These systems consume large quantities of natural gas, coke oven gas, or oil, and demand precise control over temperature and atmosphere. Zirconia oxygen analyzers enable operators to maintain consistent oxidation-reduction conditions, which are vital for metallurgical quality and energy efficiency. In applications like slab reheating, even temperature distribution directly influences downstream rolling performance and product surface quality.

4. Cement and Lime Production

Rotary kilns used in cement and lime production are highly energy-intensive and sensitive to combustion fluctuations. Improper oxygen control leads to incomplete combustion, ring formation, high clinker free-lime levels, and excessive emissions. Zirconia oxygen analyzers installed at the kiln inlet or preheater tower ensure accurate air-to-fuel ratio control, stabilizing kiln operation and clinker quality while reducing CO₂ and NOₓ emissions. These sensors are often equipped with blowback protection to deal with dusty environments.

5.Pulp and Paper Industry

Recovery boilers and lime kilns are central to chemical recovery and energy generation in pulp mills. Ensuring complete combustion of black liquor in recovery boilers requires real-time oxygen monitoring to prevent carryover, smelt bed instability, or tube corrosion. In lime kilns, consistent oxygen levels ensure proper calcination and lime quality. Zirconia analyzers are especially valuable here due to their durability in chemically aggressive flue gases.

6.Glass and Ceramics Manufacturing

Melting furnaces in glass plants and firing kilns in ceramics production require uniform temperature control and optimized fuel usage. Excess air not only reduces thermal efficiency but also alters furnace atmosphere, affecting product quality (e.g., glass homogeneity, ceramic color consistency). Zirconia oxygen sensors provide reliable, real-time oxygen readings under extreme temperatures (>1200°C), enabling consistent flame profiles and repeatable product characteristics.

7.Waste Incineration and Environmental Systems

Municipal and industrial waste incinerators must operate within strict emission limits while ensuring complete combustion to avoid toxic residues. Accurate oxygen monitoring using zirconia analyzers helps maintain stable combustion conditions despite highly variable fuel loads. Additionally, these analyzers assist in reducing excess air to control flue gas volumes and downstream treatment costs.

What Are the Key Advantages of Zirconia Over Other Oxygen Measurement Technologies?

Traditional analyzers like paramagnetic or electrochemical cells have performance trade-offs.These can include slow response, low temperature tolerance, or high maintenance.Zirconia sensors offer a more robust, accurate, and cost-effective alternative.

Zirconia oxygen analyzers stand out due to several technical benefits:

• Fast Response Time: Typical response within 1–2 seconds, critical for real-time control.
• High Operating Temperature: Capable of direct flue gas measurement, eliminating the need for extractive sampling systems.
• Stability and Longevity: Solid-state construction minimizes drift and extends service life.
• Low Maintenance: Few moving parts and in-situ calibration capabilities reduce operational downtime.
• Accuracy: Measurement deviation is typically within ±0.5% O₂, even in harsh conditions.

Compared to electrochemical sensors that degrade over time, zirconia cells have a longer service life. And unlike paramagnetic or infrared analyzers, they are not sensitive to vibration or gas pressure fluctuations, ensuring more consistent output. This reliability is crucial for safety-critical combustion applications where oxygen fluctuations can indicate imminent system faults.

Conclusion

Zirconia oxygen analyzers are essential tools for achieving safe, efficient, and environmentally compliant combustion in industrial processes. Their real-time monitoring and robustness make them a top choice across multiple industries aiming to optimize energy use and reduce emissions.
