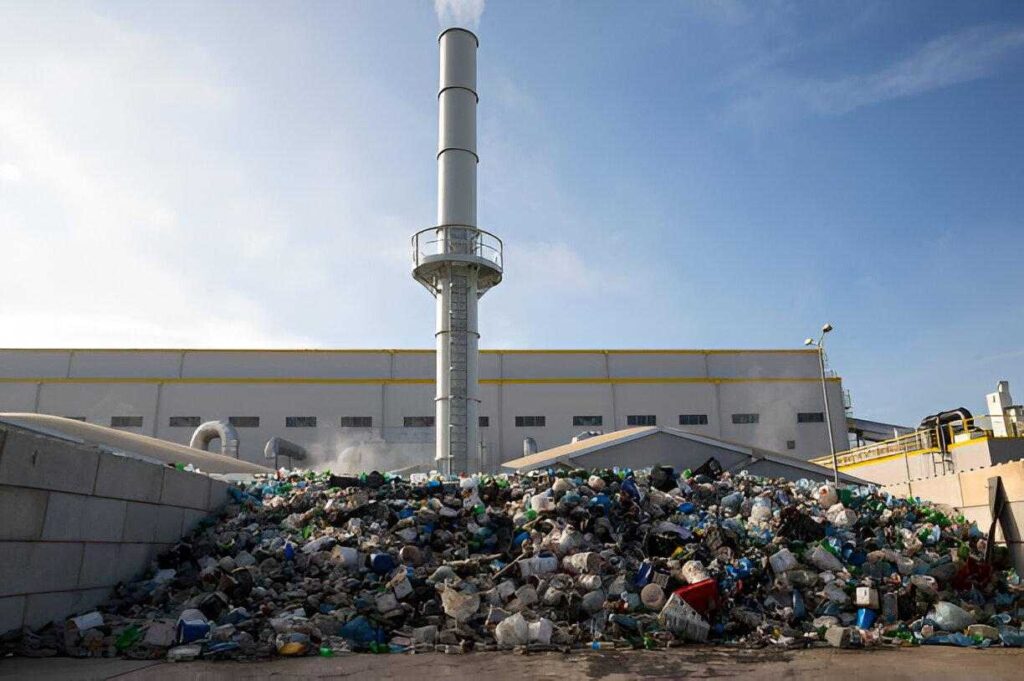

Waste-to-Energy (WtE) plants burn waste to generate power, but that process produces a complex mix of gases. Regulators in the EU, US EPA, and other regions set tight limits on pollutants such as NOx, SO₂, CO, and acid gases. To meet permits and avoid penalties, plants must measure these emissions accurately and continuously. An FTIR gas analyzer fits this need because it handles the complex gas streams typical of WtE combustion.
WtE flue gas contains dozens of compounds at different concentrations. Conventional single-gas sensors cannot capture this full picture. FTIR systems measure many gas species at once — including CO, CO₂, NO, NO₂, SO₂, HCl, HF, NH₃, CH₄, and VOCs — giving a clearer view of emissions.
Accurate emissions monitoring matters for regulatory compliance, helping plants stay within legal limits. It also supports process control, enabling operators to optimize combustion and reduce waste. Finally, reliable data protects workers and nearby communities by ensuring harmful gas levels stay low.
An FTIR gas analyzer works by measuring how gases absorb infrared light, producing a spectral “fingerprint” for each compound. This lets one instrument track many species at once, in real time, making it ideal for complex emissions streams like those found in WtE plants.
What Is FTIR and How Does an FTIR Gas Analyzer Work in a Waste-to-Energy Plant?
Understanding FTIR technology helps explain why it performs so well for emissions monitoring in Waste-to-Energy (WtE) facilities. FTIR stands for Fourier Transform Infrared spectroscopy, a method that measures how gases absorb infrared light to identify and quantify them. Unlike simple detectors that scan narrow wavelengths, FTIR collects the full infrared spectrum at once and then calculates gas identities and concentrations from that spectral data.

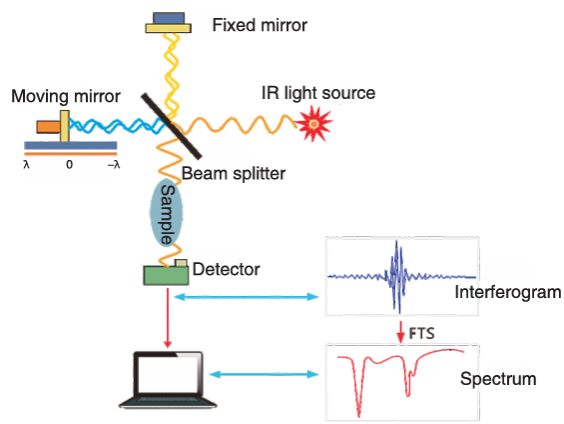

In an FTIR gas analyzer, an infrared light source sends a broad band of IR radiation through the gas sample. A device called an interferometer splits and recombines the light paths, producing a unique interference pattern of all wavelengths. The analyzer then uses a mathematical Fourier transform to convert this pattern into a clear absorption spectrum. Each gas has its own “fingerprint” in the infrared region, so the spectrum reveals which compounds are present and in what amount.
This approach gives FTIR gas analyzers a much broader measurement range than traditional single-gas sensors. Because the system captures all relevant wavelengths in one scan, it can measure multiple gas species at the same time without cross-interference. In practice, a single FTIR analyzer can monitor gases such as CO, CO₂, NOx, SO₂, HCl, HF, NH₃, CH₄, and many VOCs simultaneously — something that would require several individual instruments in a conventional setup.
FTIR’s core strengths make it especially suitable for WtE emissions: it delivers simultaneous multi-species detection, real-time continuous monitoring, and high accuracy even in challenging, complex flue gas streams. This lets plant operators track dynamic combustion changes and ensure compliance with emissions standards without installing and maintaining numerous separate sensors.
What Should You Look for When Choosing an FTIR Gas Analyzer for Waste-to-Energy Emissions Monitoring?
Selecting the best FTIR gas analyzer for a waste-to-energy (WtE) plant means matching instrument performance to strict emission rules and real-world conditions. WtE facilities must measure regulated pollutants such as NOx, SO₂, HCl, HF, CO, and particulates under local, national, or international permits. Continuous monitoring systems like FTIR-based CEMS are designed to satisfy these requirements with certified measurement ranges and reporting capabilities.
1. Analytical Performance
Your FTIR analyzer needs the right detection range and limit of quantification for key pollutants in the WtE flue gas. Instruments should deliver stable, repeatable results day after day, even in harsh industrial settings. High accuracy and low drift matter when you report to regulators or optimize combustion. FTIR systems often report wide dynamic ranges suitable for trace and high-level gases.
2. Multi-Gas Capability
A core strength of FTIR is its ability to monitor many gases at once. Modern FTIR analyzers can simultaneously measure dozens of species — from acid gases like HCl and HF to nitrogen oxides and volatile organic compounds — without extra hardware. This flexibility lets operators adjust monitoring lists via software as permits or process needs change.
3. System Integration & Data
Good FTIR systems link easily with plant control and reporting systems. Look for instruments that support common industrial outputs such as 4–20 mA, Modbus/RS485, and Ethernet, plus remote diagnostics. Seamless integration with CEMS, PLC/SCADA, and automated reporting frameworks saves time and supports compliance workflows.
4. Reliability and Maintenance
Choose analyzers built for continuous duty with features like automatic calibration, diaphragmless optical cells, and long-life components. Lower maintenance frequency and easy field serviceability reduce downtime and operating cost. Reliable FTIR systems deliver consistent performance even in dusty, hot plant environments.
5. Environmental Robustness
WtE flue gas is often hot, humid, and corrosive. Heated sampling systems and optics purge help prevent condensation and protect measurement integrity. An FTIR analyzer with industry-grade sampling conditioning ensures accurate data even in demanding stack gas conditions.
6. Cost & Total Cost of Ownership
While FTIR analyzers can have higher upfront costs than single-sensor alternatives, they often replace multiple analyzers and reduce overall maintenance and calibration work. Consider total cost of ownership — including reliability, multi-gas coverage, and integration benefits — rather than just initial price when choosing a system.
How Do Different FTIR Gas Analyzer Options Compare for Waste-to-Energy Emissions Monitoring?
When choosing an FTIR gas analyzer for a waste-to-energy (WtE) plant, engineers must match real-world performance to operational needs. FTIR solutions vary from high-accuracy continuous systems to modular setups and even portable units for field checks. Each option offers tradeoffs in scalability, maintenance, and flexibility.
1. High-Accuracy Continuous FTIR Systems

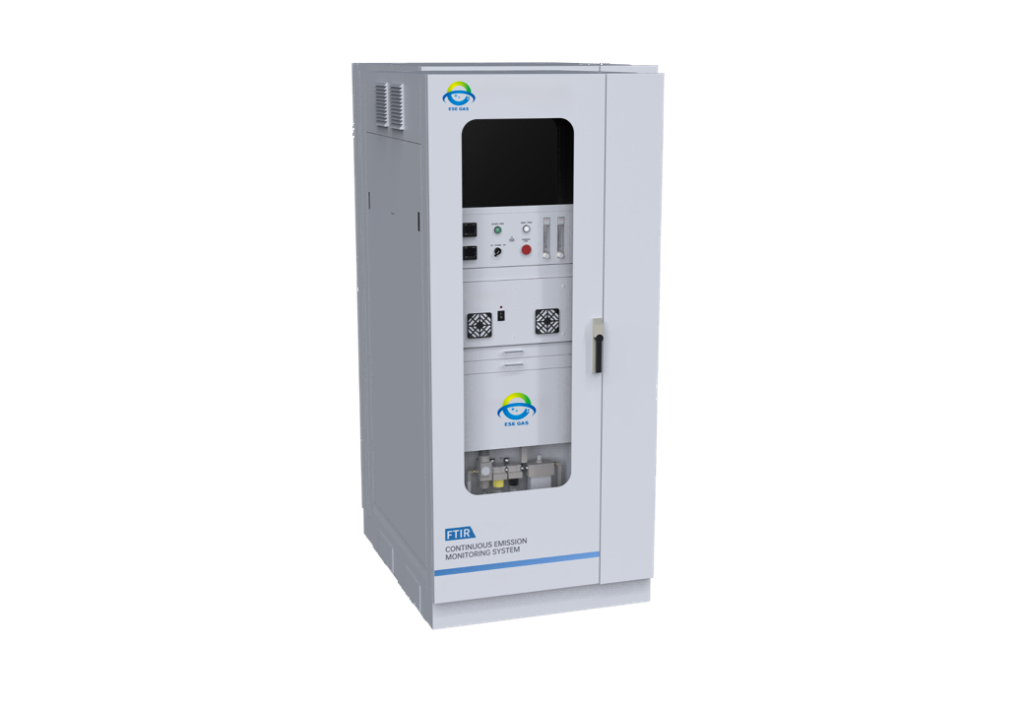

Continuous FTIR analyzers are designed for permanent installation in emissions monitoring systems. These units typically offer wide dynamic ranges, certified performance, and robust sampling conditioning for hot, wet stack gases. For example, continuous FTIR CEMS solutions can monitor multiple gases such as NOx, SO₂, CO, CO₂, HCl, HF, and VOCs in real time. Their high spectral resolution reduces interference and improves regulatory reporting reliability. These systems usually support automatic calibration, low drift, and integration with plant control systems — ideal for 24/7 compliance work.
Continuous analyzers excel in long-term regulatory monitoring and process control but often have higher upfront costs and require professional installation and conditioning systems. Their performance and stability make them the backbone of modern FTIR emissions monitoring. Transitioning from this broad category, we compare design styles that influence scalability and service.
2. Modular vs Integrated FTIR Designs
FTIR analyzers come in modular or fully integrated configurations. Modular designs let operators stack or swap functional blocks for specific tasks. This modularity simplifies servicing and can minimize downtime during repairs or upgrades. Integrated designs, by contrast, come as one unified package with all components optimized for a defined emissions application. Both styles support the same core FTIR spectroscopy principles, but modular systems may offer easier maintainability and tailored expansion over time.
The choice between modular and integrated systems often depends on operational strategy. Plants with evolving emissions requirements may prefer modular setups for flexibility, while smaller installations might favor integrated units for simplicity. Next, let’s look at how portable FTIR units fit into the monitoring landscape.
3. Portable vs Fixed Installations
Not all FTIR gas analyzers stay installed on stack sampling systems. Portable FTIR analyzers provide flexible, on-site gas analysis for field checks, stack testing, and temporary compliance verification. These units often combine battery operation, internal pumps, and compact optics to measure key gases like CO, NOx, SO₂, VOCs, and others — enabling quick checks without full sampling conditioning.
Portable units are especially useful for periodic audits, fugitive emission surveys, or field service work where fixed CEMS is not feasible. They deliver real-time results with multi-gas capability and can be used alongside permanent systems to verify performance or troubleshoot issues. While not designed for continuous regulatory reporting, portable FTIR analyzers add flexibility and fast diagnostics to an emissions monitoring program.
Conclusion & Recommendations
In summary, an FTIR gas analyzer stands out as a leading choice for emissions monitoring in waste to energy (WtE) plants because it offers real time, multi species detection, wide measurement ranges, and strong integration with regulatory reporting systems. These analyzers handle complex flue gas profiles and help operators maintain compliance with strict pollutant limits — from SO₂ and NOx to acid gases and VOCs — with reliable, continuous data.
Before procurement, define your plant’s specific requirements clearly. List the gases you must monitor, establish detection ranges and accuracy needs, and confirm system integration with your control and data systems. Assess installation space, sampling conditions, and long term serviceability. Consider both fixed continuous systems for ongoing compliance and portable FTIR analyzers for field audits and calibration checks.

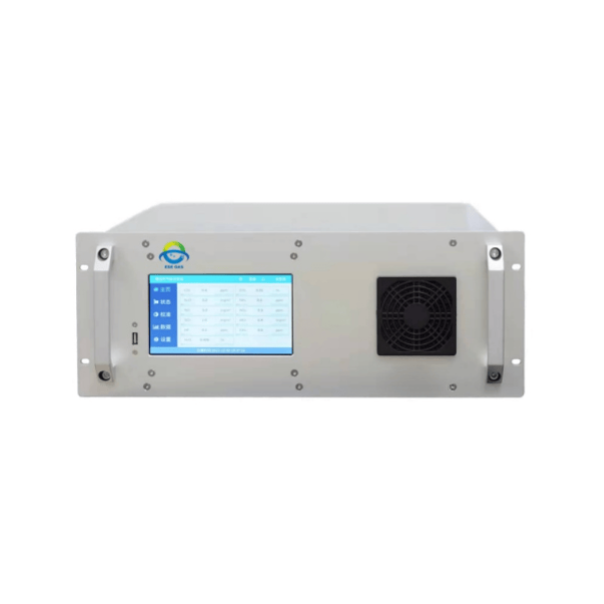

For WtE applications that demand robust multi gas monitoring, the ESE FT600 FTIR gas analyzer delivers comprehensive coverage of key pollutants with customizable extensions for additional species like NH₃, N₂O, and VOCs. Its high temperature tracing, wide dynamic range, and modular design reduce maintenance costs and improve long term stability for continuous emissions monitoring.
If you need flexible on site analysis or periodic emission checks, the ESE FTIR 100P portable FTIR gas analyzer brings lab grade multi gas detection to field environments with high sensitivity and adjustable measurement ranges.
To ensure your plant meets environmental compliance while gaining actionable insights into combustion performance and emissions control, request a quote or technical consultation on the right ESEGAS FTIR gas analyzer for your WtE operations today.
FAQs:
1. What is an FTIR gas analyzer and why is it used in Waste-to-Energy emissions monitoring?
An FTIR (Fourier Transform Infrared) gas analyzer uses infrared light to identify gas molecules by their unique absorption patterns. It can monitor many pollutants simultaneously, such as NOx, SO₂, CO, CO₂, HCl, HF, NH₃ and VOCs. This real time, multi species capability makes FTIR ideal for waste to energy (WtE) flue gas streams that contain complex, variable emissions.
2. What pollutants can an FTIR gas analyzer measure in a Waste-to-Energy plant?
FTIR gas analyzers can detect a broad range of regulated gases including:
• Nitrogen oxides (NO, NO₂, N₂O)
• Sulfur dioxide (SO₂)
• Carbon monoxide (CO) and carbon dioxide (CO₂)
• Acid gases such as hydrogen chloride (HCl) and hydrogen fluoride (HF)
• Ammonia (NH₃)
• Methane (CH₄) and other VOCs
This broad spectrum makes FTIR systems suitable for emissions compliance.
3. Can FTIR gas analyzers measure wet and corrosive flue gas?
Yes. Many FTIR systems use heated sampling and high temperature optical cells to measure hot, wet, and corrosive exhaust directly without drying. This prevents sample loss or composition change and improves measurement reliability in WtE environments.
4. What are the differences between continuous and portable FTIR gas analyzers?
• Continuous FTIR systems are installed permanently for long term emissions monitoring and CEMS integration.
• Portable FTIR gas analyzers are handheld or transportable analyzers used for on site checks, audits, field testing, and calibration comparisons.
Portable units provide flexibility but are not typically used for continuous compliance reporting.
5. How does software help FTIR gas analyzers handle multi gas monitoring?
FTIR systems rely on spectral libraries and advanced software to identify and quantify gas species. Users can add or modify target gas lists via software updates without changing hardware. This makes FTIR flexible for evolving regulatory requirements or new plant needs.
6. Are FTIR gas analyzers suited for other industrial emissions applications?
Yes. FTIR gas analyzers are used in power plants, cement kilns, petrochemical facilities, and other combustion sources where multi component and continuous monitoring is required. Their flexibility and broad measurement range benefit many industries beyond WtE.
