Introduction

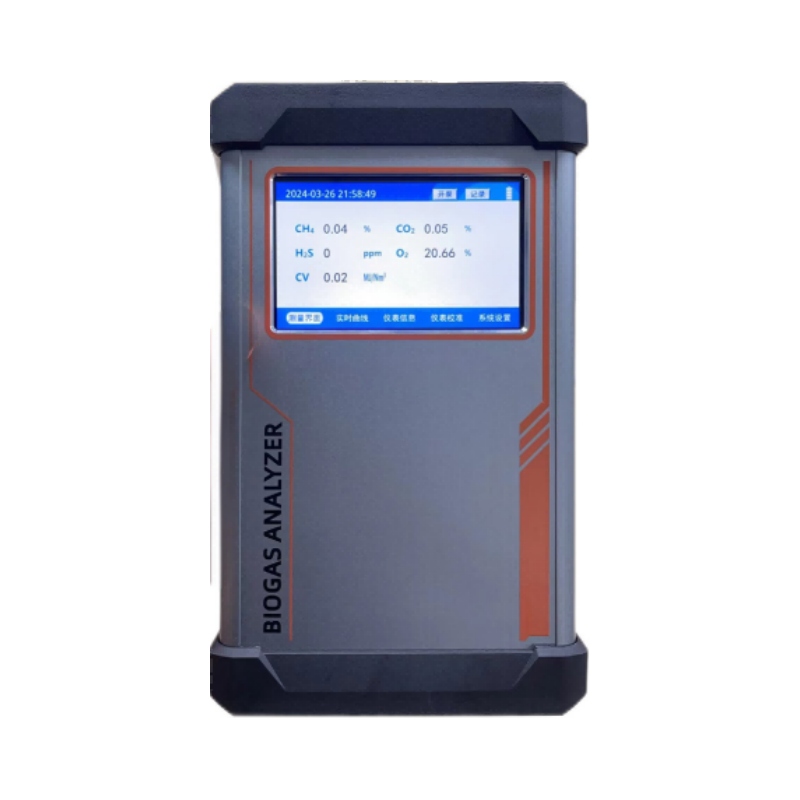

The ESEGAS IR-GAS-400H Portable Biogas Analyzer is designed for on-site measurement of gas composition in biogas production, anaerobic digestion, and landfill gas monitoring applications. It can simultaneously measure CH₄, CO₂, H₂S, and O₂, with optional H₂ and CO measurement for expanded gas analysis. Applying NDIR technology, electrochemical sensors, and optional TCD channel. With a built-in sampling pump, touchscreen display, rechargeable battery, and USB or RS485 communication, the analyzer provides practical field testing for biogas quality assessment and digester performance optimization.

Measured Gas: CH₄ | CO₂ | H₂S | O₂ | (H₂ & CO optional)

Technology: NDIR | Electrochemical (EC) Sensor

Configurations: Handhold

Measuring Principle

  1. Non-Dispersive Infrared (NDIR) Measurement In portable biogas analyzer, it uses NDIR technology to measure methane (CH₄) and carbon dioxide (CO₂), two of the main components of biogas. Gas molecules such as CH₄ and CO₂ absorb infrared radiation at characteristic wavelengths. Inside the analyzer, infrared light passes through a gas measurement chamber. The detector measures the transmitted infrared intensity, and the analyzer determines the concentration of each target gas based on its infrared absorption characteristics.
  2. Electrochemical Gas Measurement In portable biogas analyzer, it uses Electrochemical sensors for hydrogen sulfide (H₂S), oxygen (O₂) and other supported gas channels according to the analyzer configuration. For H₂S measurement, gas molecules diffuse through a membrane into an electrochemical sensing cell, where a chemical reaction generates an electrical current proportional to the gas concentration. It uses an appropriate electrochemical oxygen sensor to measure Oxygen. The EC sensor allows operators to identify changes in O₂ concentration that may indicate air ingress or changes in process conditions.

Technical Specification

Product Model Portable Handhold
Measuring Gas CO2, H2S, O2, CH4 (CO, H2 optional)
Principle CO2, CH4: NDIR; H2S/O2: Electrochemical (EC) sensor
Range CH4: 0-100%; CO2: 0-50%; H2S: 0-9999ppm; O2: 0-25%
Accuracy CO2/CH4: ±2%FS; H2S/O2: ±2%FS
Resolution CO2/CH4/O2: 0.01%; H2S: 1ppm
Repeatability CO2/CH4/H2S/O2: ≤1%
Optimal Flow 0.7-1.2L/min
Inlet Pressure 2-50kPa
Response Time T90<15s (NDIR)
Sample Gas Requirement Dust-free, water-free, oil-free
Communications RS232/RS485, USB
Display 5-inch TFT LCD Touch Screen Display
Power AC220V, 50Hz. Built in rechargeable lithium battery power supply, external 12.6 charger
Function Configuration Built-in imported sampling air pump. With self-diagnosts function, the sensor status can be checked online.


Key Features

  • Simultaneous Six-Gas Measurement: Measures CH₄, CO₂, H₂S, O₂, H₂ and CO in one instrument, providing comprehensive biogas composition data for production monitoring and process evaluation.
  • NDIR Infrared Measurement Technology: Uses imported NDIR sensors for CH₄ and CO₂ measurement, providing stable optical detection of major biogas components without consuming the target gases.
  • Long-Life Electrochemical Sensors: Integrates electrochemical sensors for H₂S, O₂ and other supported gas components, enabling complementary measurement of gases that cannot be measured using conventional NDIR technology.
  • Advanced Digital Signal Processing: Processes multiple sensor signals to provide simultaneous gas concentration readings, helping operators monitor gas composition and identify process changes.
  • Portable On-Site Gas Analysis: Designed for field measurements at biogas production facilities, landfill sites, wastewater treatment plants and anaerobic digestion systems, supporting flexible gas composition testing at different sampling locations.
  • Biogas Quality & Process Monitoring: Tracks CH₄ and CO₂ concentrations to help assess biogas composition, while H₂S, O₂, H₂ and CO measurements provide additional information for gas quality evaluation and anaerobic fermentation monitoring.
  • Support for Environmental Measurement Projects: Provides biogas composition data for monitoring activities associated with CCER and CDM projects. Additional flow measurements, approved methodologies and verification procedures may be required for emissions reduction accounting.

Applications

  • Anaerobic Digestion & Biogas Production
  • Landfill Gas Monitoring
  • Wastewater & Sewage Treatment
  • CCER & CDM Measurement Projects

A portable biogas analyzer measures the composition of biogas produced by anaerobic digestion, landfill gas recovery, and organic waste treatment processes.

Common measurement components include CH₄, CO₂, H₂S, and O₂. Depending on the configuration, H₂ and CO measurement may also be available.

NDIR technology measures methane and carbon dioxide through their characteristic infrared absorption. Other sensors, such as electrochemical sensors, can measure H₂S and O₂.

Hydrogen sulfide is corrosive and can damage gas engines, pipelines, and downstream equipment. Monitoring H₂S helps evaluate gas quality and determine the need for desulfurization.

Yes. Measuring CH₄, CO₂, and other gas components helps operators assess biogas composition, identify process changes, and evaluate digester operation.

Consider the target gases, measurement ranges, H₂S concentration, sample moisture, sampling pump, battery life, data storage, and field operating conditions.

Still having questions? Please just contact us directly!

Measuring Principle

  1. Non-Dispersive Infrared (NDIR) Measurement
    In portable biogas analyzer, it uses NDIR technology to measure methane (CH₄) and carbon dioxide (CO₂), two of the main components of biogas. Gas molecules such as CH₄ and CO₂ absorb infrared radiation at characteristic wavelengths. Inside the analyzer, infrared light passes through a gas measurement chamber. The detector measures the transmitted infrared intensity, and the analyzer determines the concentration of each target gas based on its infrared absorption characteristics.
  2. Electrochemical Gas Measurement
    In portable biogas analyzer, it uses Electrochemical sensors for hydrogen sulfide (H₂S), oxygen (O₂) and other supported gas channels according to the analyzer configuration. For H₂S measurement, gas molecules diffuse through a membrane into an electrochemical sensing cell, where a chemical reaction generates an electrical current proportional to the gas concentration. It uses an appropriate electrochemical oxygen sensor to measure Oxygen. The EC sensor allows operators to identify changes in O₂ concentration that may indicate air ingress or changes in process conditions.

Technical Specification

Product Model Portable Handhold
Measuring Gas CO2, H2S, O2, CH4 (CO, H2 optional)
Principle CO2, CH4: NDIR; H2S/O2: Electrochemical (EC) sensor
Range CH4: 0-100%; CO2: 0-50%; H2S: 0-9999ppm; O2: 0-25%
Accuracy CO2/CH4: ±2%FS; H2S/O2: ±2%FS
Resolution CO2/CH4/O2: 0.01%; H2S: 1ppm
Repeatability CO2/CH4/H2S/O2: ≤1%
Optimal Flow 0.7-1.2L/min
Inlet Pressure 2-50kPa
Response Time T90<15s (NDIR)
Sample Gas Requirement Dust-free, water-free, oil-free
Communications RS232/RS485, USB
Display 5-inch TFT LCD Touch Screen Display
Power AC220V, 50Hz. Built in rechargeable lithium battery power supply, external 12.6 charger
Function Configuration Built-in imported sampling air pump. With self-diagnosts function, the sensor status can be checked online.
