Portable Flue Gas Analyzer

Portable Flue Gas Analyzer

Portable Flue Gas Analyzer

The UV-DOAS-500P is our independently developed portable flue gas analyzer, engineered for precise online gas analysis in environmental protection and industrial control applications worldwide. Leveraging advanced Ultraviolet Differential Optical Absorption Spectroscopy (UV-DOAS), this compact instrument delivers fast, reliable measurements of multiple gas components—including SO₂, NO, NO₂, O₂, CO, and CO₂—in a single, field-ready unit.

The UV-GAS-500P is a cutting-edge portable flue gas analyzer designed for ultra-low emission monitoring in harsh industrial environments. Leveraging advanced DOAS (Differential Optical Absorption Spectroscopy) technology, this compact analyzer delivers real-time, high-precision measurements. The key gases are SO₂, NO, and NO₂ concentrations. Moreover, it completely free from cross-interferences caused by dust, moisture, CO, CO₂, or HCl. Its multi-pass gas chamber design achieves an exceptionally low detection limit, ensuring compliance with stringent emission regulations.

Key features:

  • Multi-Component Analysis: Measures SO₂, NO, NO₂, O₂, CO, and CO₂,CH4 simultaneously for comprehensive flue gas profiling.

  • Integrated Flue Diagnostics: On-board sensors record flue temperature, pressure, flow velocity, and sampling velocity—enabling accurate calculation of excess air coefficient and pollutant emission rates.

  • High Accuracy & Stability: Exceptional measurement precision with minimal drift and rapid response time- ideal for both routine inspections and urgent troubleshooting.

  • Full UV-Spectrum Measurement: Electronic scan across the ultraviolet spectrum without moving optical parts—eliminates mechanical wear, reduces maintenance, and guarantees consistent performance.

  • Robust Gas Compatibility: Low requirements for sample gas conditioning; operates effectively in high-dust environments without the need for complex filtration.

Technical Principle:

Parameters Description
Technology NO, NO₂, SO₂: UV-DOAS
O₂: ECD
CO, CO₂: NDIR
Measurement
Range
SO₂: 0~1000ppm
NO: 0~1000ppm
NO₂: 0~1000ppm
O₂: 0~25%
CO: 0~2000ppm
CO₂: 0~25%
Accuracy ±2%FS
Resolution 1ppm
Power Supply 220V/AC
Condition Temperature:5°C~45°C
Humidity:0%RH~85%RH
Intake flow:(1.5~2)L/min
External
Interface
Module
RS485, USB interface, etc.
Touch Screen Human-computer interaction interface

System Components:

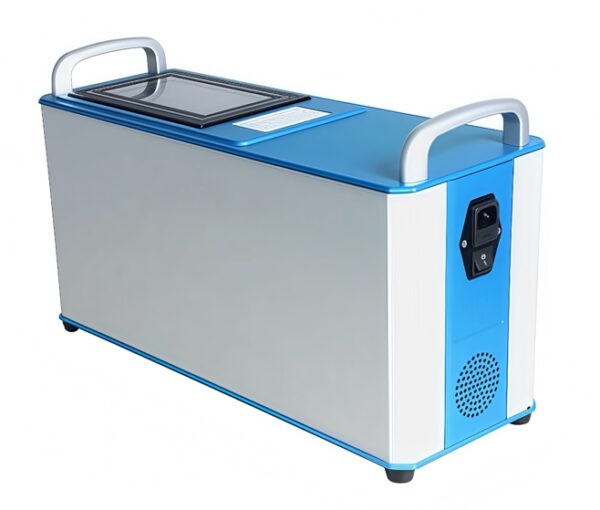

  • Portable Flue Gas Analyzer (Analyzer)

    • Key Features:

      • Compact, rugged design for on-site measurements

      • High-precision sensors to detect SO₂, NO, NO₂, O₂, CO₂, CO,CH4

      • User-friendly touchscreen interface for instant data visualization

      • USB/SD connectivity for data logging and reports

      • Battery-operated for up to 8 hours of continuous use

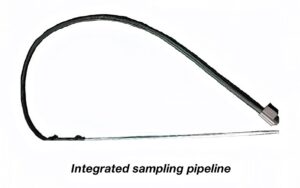

  • Flue Gas Sampler

    • Intergrated-sampling-pipeline
    • Function:

      • Extracts flue gas directly from chimneys, ductwork, or stacks

      • Built-in stainless steel filter element removes particulate matter

      • Ensures clean, dust-free sample stream for accurate analysis

      • Lightweight and portable design for rapid deployment

  • Heat Tracing Pipeline

    • Function:

      • Maintains sample line temperature to prevent water vapor condensation

      • Durable, insulated piping compatible with extreme temperature environments

      • Ensures stable, moisture-free gas delivery to the analyzer

      • Minimizes sample transport time for faster response

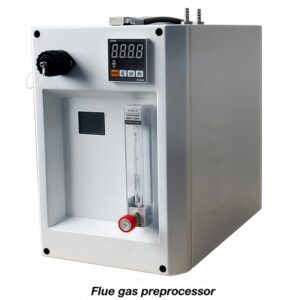

  • Flue Gas Preprocessor

    • flue-gas-preprocessor
    • Function:

      • Pre-conditions flue gas by filtering, condensing, and removing moisture

      • Protects analyzer sensors from corrosion and clogging

      • Integrated condensate trap for continuous water removal

      • Simplifies maintenance with modular filter and drain access

The UV-GAS-500P is a cutting-edge portable flue gas analyzer designed for ultra-low emission monitoring in harsh industrial environments. Leveraging advanced DOAS (Differential Optical Absorption Spectroscopy) technology, this compact analyzer delivers real-time, high-precision measurements. The key gases are SO₂, NO, and NO₂ concentrations. Moreover, it completely free from cross-interferences caused by dust, moisture, CO, CO₂, or HCl. Its multi-pass gas chamber design achieves an exceptionally low detection limit, ensuring compliance with stringent emission regulations.

Key features:

  • Multi-Component Analysis: Measures SO₂, NO, NO₂, O₂, CO, and CO₂,CH4 simultaneously for comprehensive flue gas profiling.

  • Integrated Flue Diagnostics: On-board sensors record flue temperature, pressure, flow velocity, and sampling velocity—enabling accurate calculation of excess air coefficient and pollutant emission rates.

  • High Accuracy & Stability: Exceptional measurement precision with minimal drift and rapid response time- ideal for both routine inspections and urgent troubleshooting.

  • Full UV-Spectrum Measurement: Electronic scan across the ultraviolet spectrum without moving optical parts—eliminates mechanical wear, reduces maintenance, and guarantees consistent performance.

  • Robust Gas Compatibility: Low requirements for sample gas conditioning; operates effectively in high-dust environments without the need for complex filtration.

Measuring carbon dioxide (CO2) is important for understanding the role it plays in the environment and its effect on climate change. CO2 is a major component of Earth’s atmosphere, and it traps heat like a blanket, causing global temperatures to rise. Too m uch CO2 can lead to drastic changes in our weather patterns and ecosystems, so monitoring its levels is essential for predicting future climate conditions. Additionally, measuring CO2 can help us better understand our impact on the environment and make informed decisions about how to reduce emissions and slow down down down down down global warming. By analyzing CO2 data over time, we can develop strategies to mitigate the effects of climate change and ensure a sustainable future.

Before industrialization, the global average annual atmospheric carbon dioxide concentration was 278ppm (1ppm is one part per million). In 2012, the global annual average atmospheric carbon dioxide concentration was 393.1ppm. By April 2014 , the monthly average carbon dioxide concentration in the northern hemisphere atmosphere exceeded 400ppm for the first time. . 2. Global climate warming, the continuous aggravation of the atmospheric greenhouse effect leads to global climate warming, resulting in a series of global climate problems that cannot be predicted by today’s science. According to the International Climate Change Economics Report, if human beings maintain the current way of life, by 2100, there will be a 50% chance that the global average temperature will rise by 4°C.
