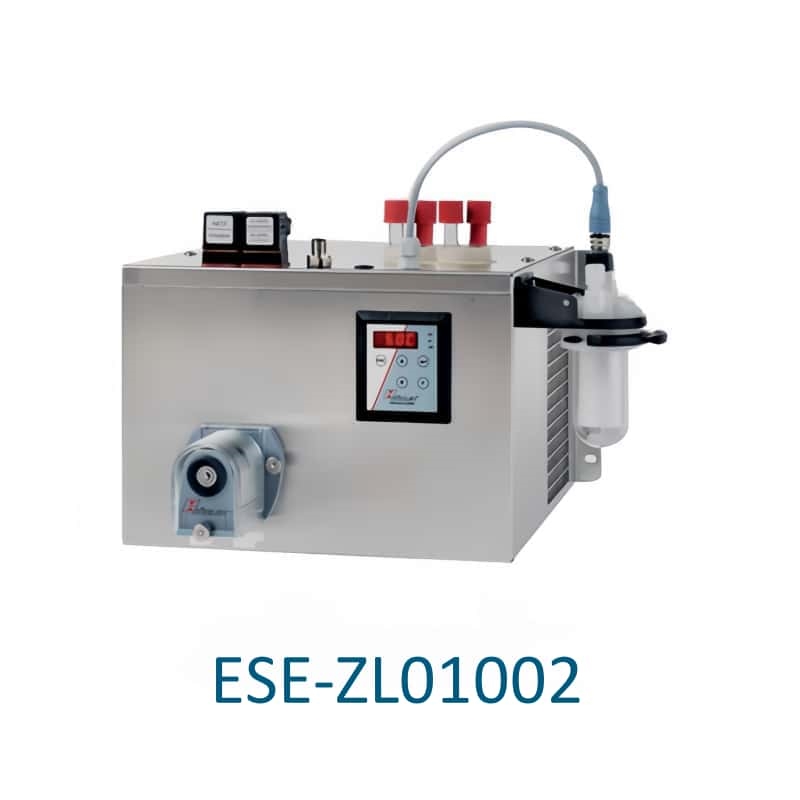

Bühler Sample Gas Cooler RC1.2+

Bühler Sample Gas Cooler RC1.2+

Bühler Sample Gas Cooler RC1.2+

We extract sample gas directly from your process—and with it, unwanted particles and moisture that can skew results or harm analyzer cells. To safeguard accuracy, we actively condition the gas before analysis. The Bühler Sample Gas Cooler RC1.2+ chills the gas below its dew point, condensing moisture and expelling it as liquid condensate—ensuring analyzers receive consistently clean, dry samples.

We’ve even upgraded the design with next‑generation heat exchangers that minimize wash‑out of water‑soluble components—particularly SO₂—making the RC 1.2+ ideal for continuous emission monitoring and compliant with EN 15267‑3 standards. Plus, operators can monitor status via a standard output, or opt for 4–20 mA analog or Modbus RTU digital interfaces to access live process and diagnostic data and configure settings in real time.

We crafted the RC 1.2+ series specifically for automated measuring systems (AMS) compliant with EN 15267‑3, using two heat exchangers in series to cool the gas across two cycles, minimizing wash‑out effects and preserving critical water‑soluble components like SO₂. Choose between two cooler types—differentiated by their cooling nests—with the precise model defined through our intuitive type‑designation code in the ordering section.

For versatile monitoring, select from:

  • Standard status output

  • 4–20 mA analog output (with status)

  • Modbus RTU digital interface (with status)

You can further customize your system by integrating:

  • A peristaltic condensate pump

  • A fine‑mesh filter

  • A moisture detector

These options let you configure a complete, plug‑and‑play gas‑conditioning module that simplifies installation and maintenance—thanks to ready‑fitted components, clear hose routing, and easy access to wear parts



Technical Specification
Ready-for-operation After max. 15 minutes
Rated cooling capacity
(at 25 °C ambient temperature)
390 kJ/h
Ambient temperature 5 °C ~50 °C
(Preset) gas outlet temperature 5 °C
Protection class IP20
Housing Stainless steel
Weight including heat exchanger Approx. 15.5kg
Power supply 115V,60Hz or 230V,50/60Hz±5%
(Plug per DIN EN 175301‑803)
Packaging dimensions Approx. 420mmx400mmx350mm

We crafted the RC 1.2+ series specifically for automated measuring systems (AMS) compliant with EN 15267‑3, using two heat exchangers in series to cool the gas across two cycles, minimizing wash‑out effects and preserving critical water‑soluble components like SO₂.

Choose between two cooler types—differentiated by their cooling nests—with the precise model defined through our intuitive type‑designation code in the ordering section.



For versatile monitoring, select from:

  • Standard status output

  • 4–20 mA analog output (with status)

  • Modbus RTU digital interface (with status)


You can further customize your system by integrating:

  • A peristaltic condensate pump

  • A fine‑mesh filter

  • A moisture detector

These options let you configure a complete, plug‑and‑play gas‑conditioning module that simplifies installation and maintenance—thanks to ready‑fitted components, clear hose routing, and easy access to wear parts

Measuring carbon dioxide (CO2) is important for understanding the role it plays in the environment and its effect on climate change. CO2 is a major component of Earth’s atmosphere, and it traps heat like a blanket, causing global temperatures to rise. Too m uch CO2 can lead to drastic changes in our weather patterns and ecosystems, so monitoring its levels is essential for predicting future climate conditions. Additionally, measuring CO2 can help us better understand our impact on the environment and make informed decisions about how to reduce emissions and slow down down down down down global warming. By analyzing CO2 data over time, we can develop strategies to mitigate the effects of climate change and ensure a sustainable future.

Before industrialization, the global average annual atmospheric carbon dioxide concentration was 278ppm (1ppm is one part per million). In 2012, the global annual average atmospheric carbon dioxide concentration was 393.1ppm. By April 2014 , the monthly average carbon dioxide concentration in the northern hemisphere atmosphere exceeded 400ppm for the first time. . 2. Global climate warming, the continuous aggravation of the atmospheric greenhouse effect leads to global climate warming, resulting in a series of global climate problems that cannot be predicted by today’s science. According to the International Climate Change Economics Report, if human beings maintain the current way of life, by 2100, there will be a 50% chance that the global average temperature will rise by 4°C.
