HCL laser on-line monitoring system

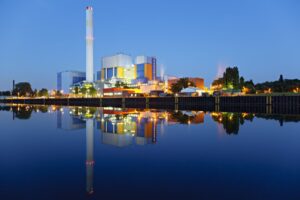

Waste generation application Customer Name: International energy waste incineration power generation

Running Time: 2017-10

Field technology: natural gas is used as fuel, urban waste is incineration at high temperature. After burning, the tail gas is removed by denitrification, desulfurization and dedusting process





 Installation position: exhaust flue gas

Measurement range: 0-100mg/m3

The above is the change trend curve of SO2 and HCL in the same period. From the map, HCL and SO2 have similar trend of change.  which both have a good response to the change of deacidification process.

HCL laser on-line monitoring system — medical waste in Yongkang Customer Name: Medical waste in Yongkang, Anhui

Running Time: 2016-12

Field technology: the site is mainly used for the incineration treatment of medical waste, the exhaust emission is first deacidification treatment, the deacidification agent is NaHO, and then dedusting and discharging. The limit of emission limit is HCL 100mg/m3

Installation position: the equipment is installed in the middle of the chimney, about 10m high, and the diameter of the chimney is 0.5m

Measurement range: 0-300mg/m3
