Introduction

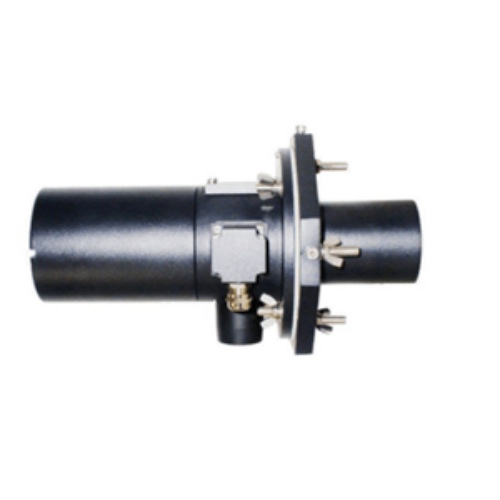

Dust Monitor ESE-DUST-2004 is a laser-based backscatter particulate monitor that is designed to measure the dust loading of the combustion exhaust gas stream. The electrical output from the dust monitor is proportional to the light scattered back from the particles in the gas stream.
| Principle | Optical backscatter of light from a red Laser |
| Measuring object | Particles in the gas steam |
| Physical Characteristics | Material: Mental |
| Optical head Dimensions: 185×160×160mm (L×W×H) | |
| Flange: inner dia. Ø 65mm | |
| Purge blower pipe: Ø 40mm | |
| Physical Weights : 2kg | |
| Degree of Protection : IP66 | |
| Optical Characteristics | Laser Diode, (650 ±20)nm, 10mW |
| Measuring Characteristics | Range: (0～100, 500, 1000, 2000, 10000)mg/m3, Selectable |
| Zero Drift: ±2%FS/24hr | |
| Span Drift : ±2%FS/24hr | |
| Repeatability : ±2%FS | |
| Response Time: ≤ 10S | |
| Measuring Length:（0.5～20）M | |
| Power Requirements | DC 9～24V/ |
| Ambient Condition | -20ºC～+50ºC |
| Output | Analog output: (4～20)mA |
| Digital output : RS485 |
| Principle | Optical backscatter of light from a red Laser |
| Measuring object | Particles in the gas steam |
| Physical Characteristics | Material: Mental |
| Optical head Dimensions: 185×160×160mm (L×W×H) | |
| Flange: inner dia. Ø 65mm | |
| Purge blower pipe: Ø 40mm | |
| Physical Weights : 2kg | |
| Degree of Protection : IP66 | |
| Optical Characteristics | Laser Diode, (650 ±20)nm, 10mW |
| Measuring Characteristics | Range: (0～100, 500, 1000, 2000, 10000)mg/m3, Selectable |
| Zero Drift: ±2%FS/24hr | |
| Span Drift : ±2%FS/24hr | |
| Repeatability : ±2%FS | |
| Response Time: ≤ 10S | |
| Measuring Length:（0.5～20）M | |
| Power Requirements | DC 9～24V/ |
| Ambient Condition | -20ºC～+50ºC |
| Output | Analog output: (4～20)mA |
| Digital output : RS485 |
